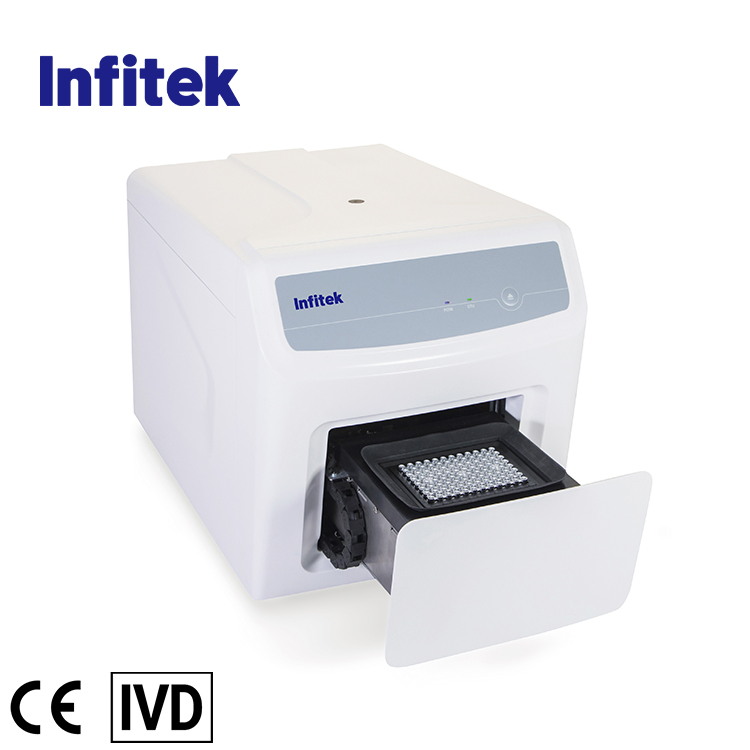

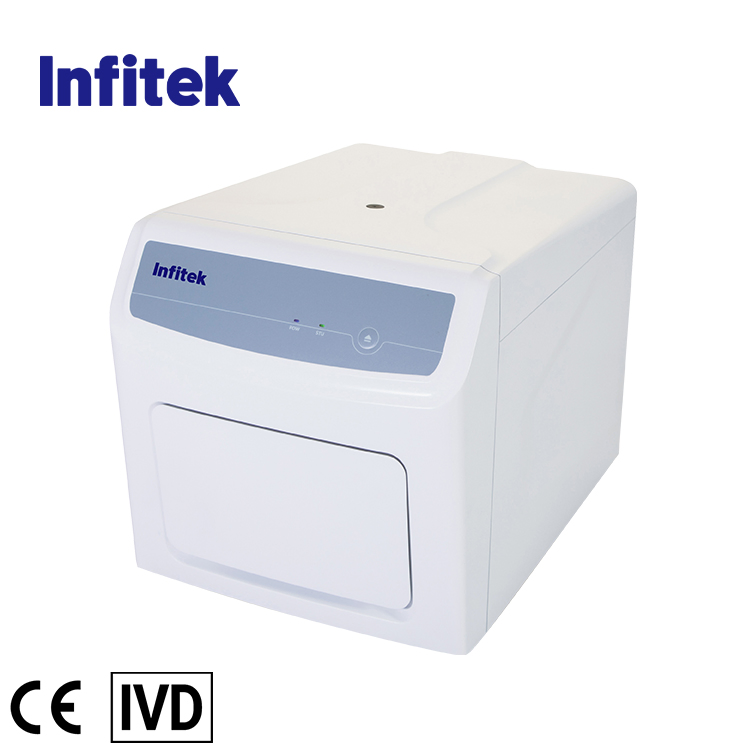

Infitek Real Time PCR System Rt PCR Test Machine with 96well

1 / 2

Infitek Real Time PCR System Rt PCR Test Machine with 96well

Customization:	Available
Classification:	Biological Diagnostics
Type:	Real Time PCR System

Send Inquiry

Product Description

Basic Info

Model NO.:PCR-Q96 Series

Certification:CE

Reaction Volume:10-50UL

Fluorescent Channels:4/6

Origin:China

Production Capacity:2000 Units/Month

Product Description

As a necessary choice for quantitative analysis of molecular biology, the real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.

Main Features

Up to 6 fluorescence detection channels allowing multiplex PCR.
Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.
New optical scanning detection system.
Innovative scanning method and time-resolved signal separation technology.
Unique edge temperature compensation technology.

Specifications

Model	PCR-Q96-5	PCR-Q96-6
Sample capacity	96
Reaction volume	10-50 μl
Thermal cycle technology	Peltier
Temperature control system
Max. Heating/Cooling rate	6.0° C/s
Heating temperature range	4 - 100 °C
Temperature accuracy	± 0.2°C
Temperature uniformity	±0.2ºC @60ºC , ±0.3ºC @95ºC
Detection system
Excitation light source	4 monochrome high efficiency LEDs	6 monochrome high efficiency LEDs
Detection device	PMT
Fluorescent channels	5 channels	6 channels
Sensitivity	Single copy gene

Gallery & Packaging

Frequently Asked Questions

Q: Can the QPCR system be used directly upon arrival? A: It needs to be unlocked first. Video instructions are provided, and no calibration is required after transportation.

Q: What are the PC requirements for software installation? A: It requires a Windows 10 system. New PCs need a driver installed before the software. The screen must remain active (not in dormant status) during runs.

Q: What is the benefit of the top-scanning method? A: It scans each tube in sequence from the top to avoid crosstalk and ensure accurate fluorescence values.

Q: Does the result need to be corrected by ROX? A: No ROX correction is required for this system.

Q: What is the sample volume and suitable tube size? A: Recommended sample volume is 10-50ul. We recommend using 100ul PCR tubes or low-profile 200ul tubes to prevent steam interference.

Q: How do PMT and CCD detection differ? A: PMT is a highly sensitive detector that scans wells separately to reduce crosstalk. CCD collects all values at once, which is faster but different in sensitivity.
