Product Description

📋 Basic Information
Model NO.
CD-SQmini
Certification
CE, ISO13485
Sample Capacity
16 Well × 0.2ml
Reaction Volume
5-100μL
Fluorescence Channel
4 Channels
Sensitivity
1 Copy
Materials
High-quality Plastic
Customization
OEM, ODM, OBM Supported
🔬 Product Description

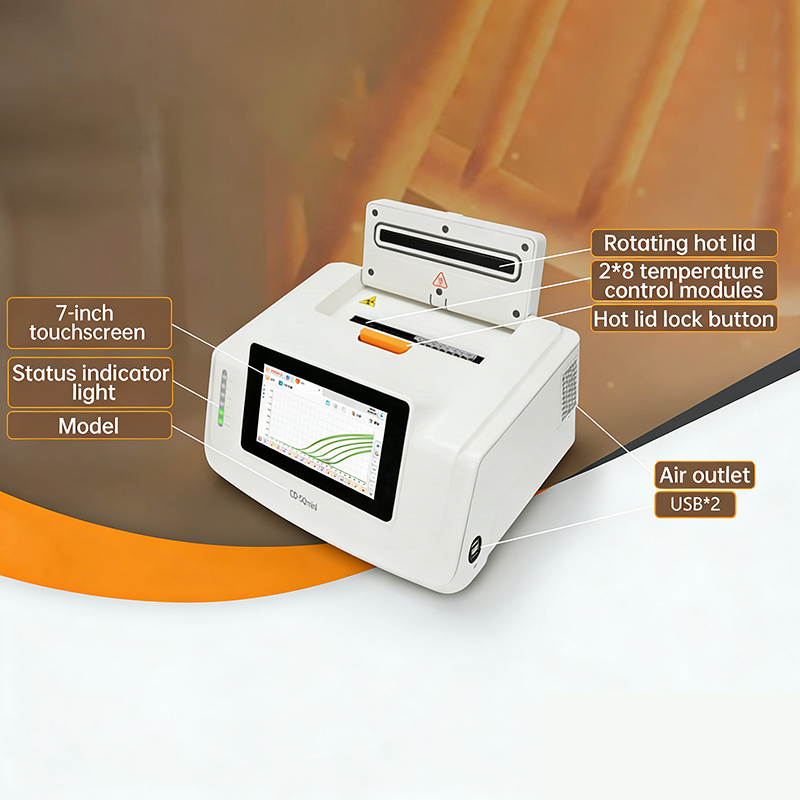

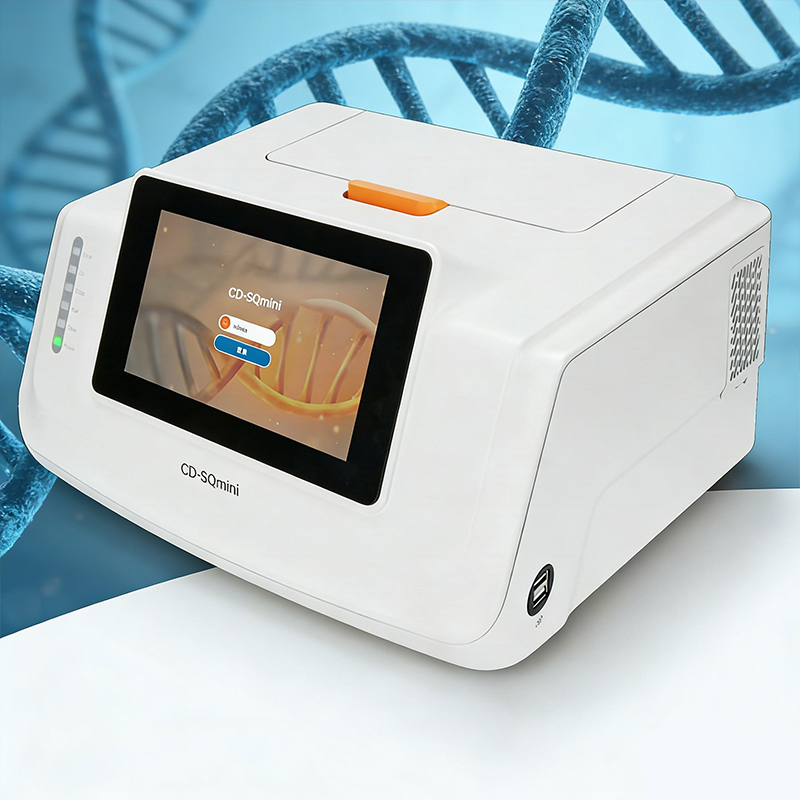

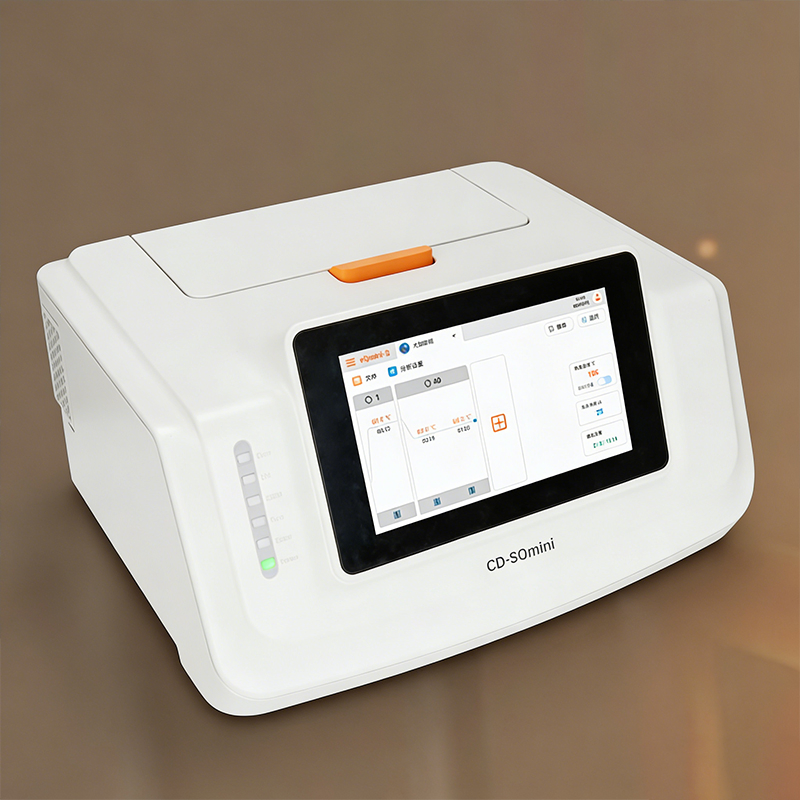

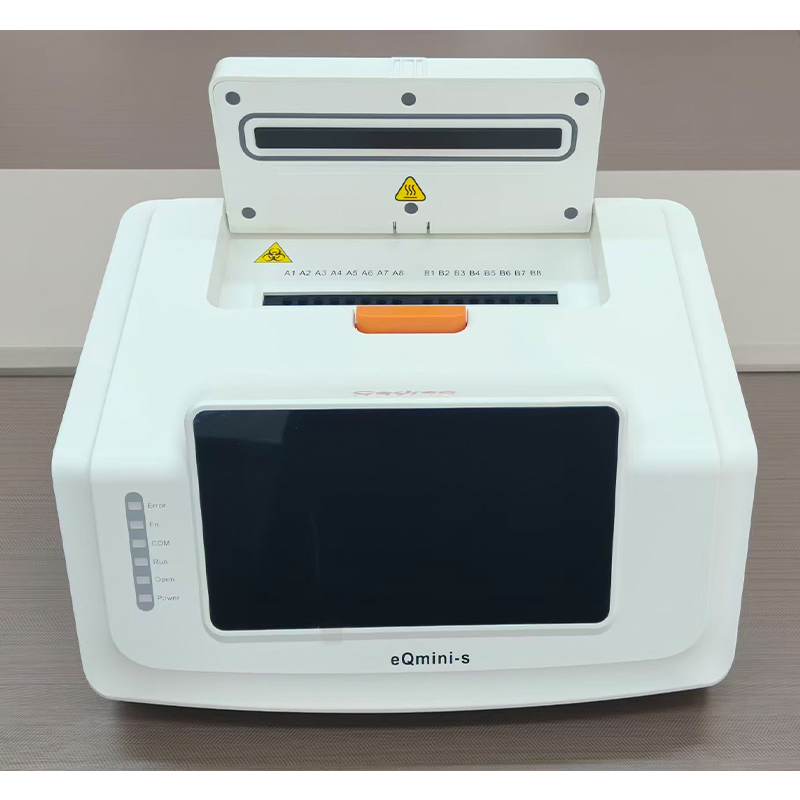

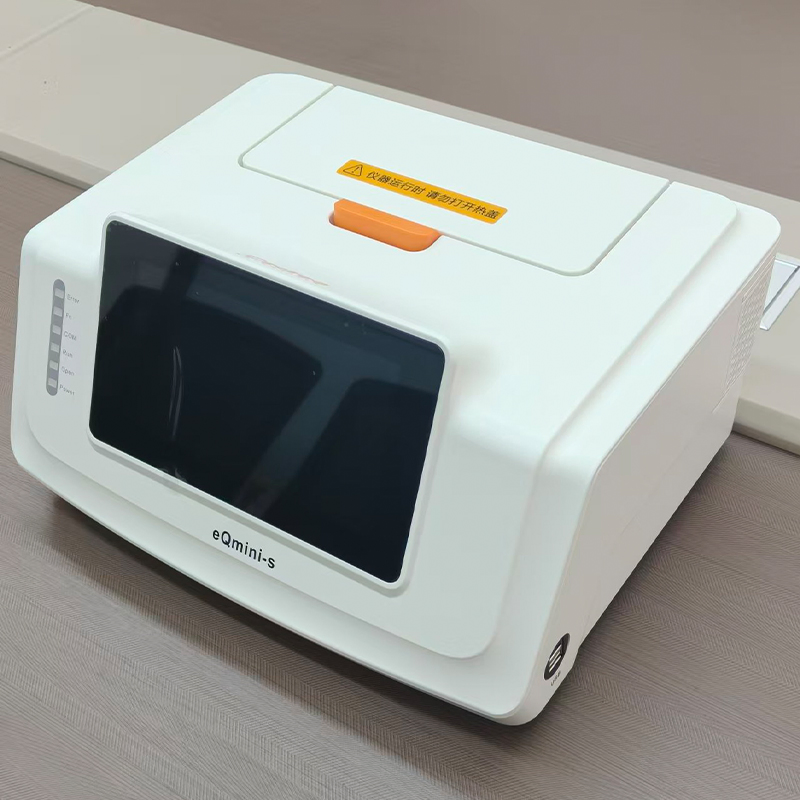

Real-time Fluorescent Quantitative PCR - CD-SQmini
PCR Detection System View 1
PCR Detection System View 2
PCR Detection System View 3

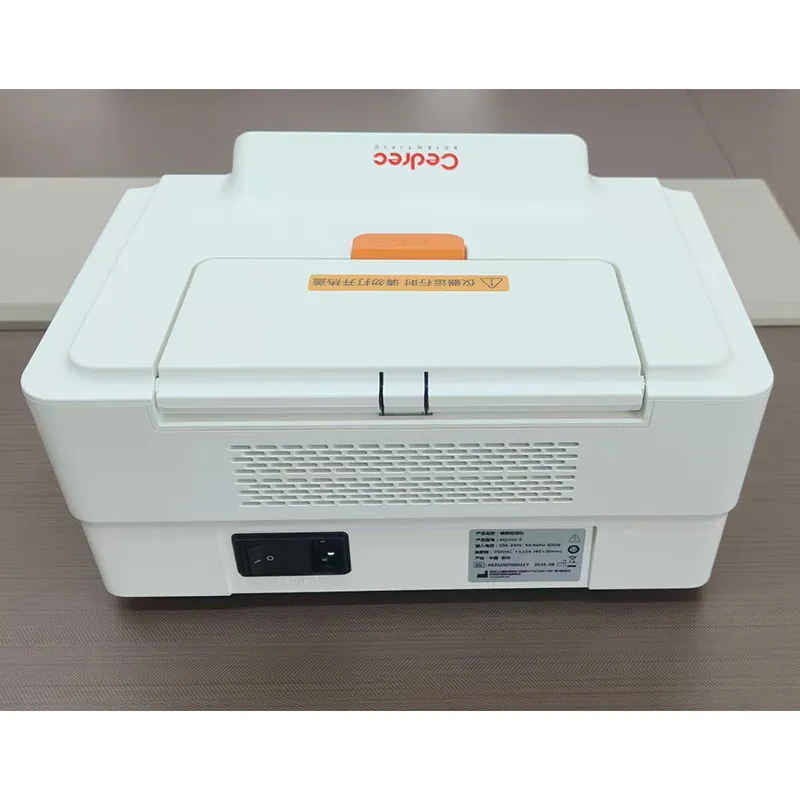

PCR Detection System View 4
Key Features
1
Proprietary "DFD" dual-dimensional photoelectric module with strong fluorescence signal and low background noise.
2
Android system with touchscreen control and built-in software for efficient operation.
3
Supports multiple monitoring units via mobile phone; extremely compact and portable design.
4
Lightweight temperature control module ensures rapid changes and excellent uniformity.
5
Built-in multiple report templates and direct printer connection capability.
6
Simple, animated user interface with powerful comprehensive software functions.
⚙️ Technical Specifications
ModelCD-SQmini
Sample Capacity16 well × 0.2ml
Reaction Volume5-100μL
Dynamic Range1-10^10 copies
Fluorescence Wavelength400–700 nm
Fluorescence DyesCH1: FAM/SYBR Green I; CH2: HEX/JOE/VIC; CH3: ROX/TexasRed; CH4: Cy5
Detection TechnologyFour-PD detection, independent excitation for multiplex PCR
Sensitivity1 copy
Temp. Control TechPeltier semiconductor cooling technology
Max Heating/Cooling Rate≥4°C/s
Module Uniformity≤±0.2°C
Dimension (D*W*H)341 * 274.5 * 188mm
Net/Gross Weight7 / 11 kg
🔗 Related Products

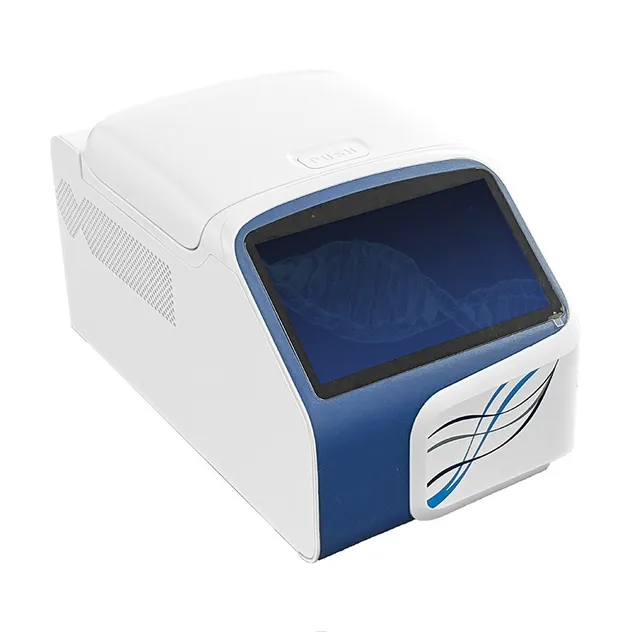

Related product 1
