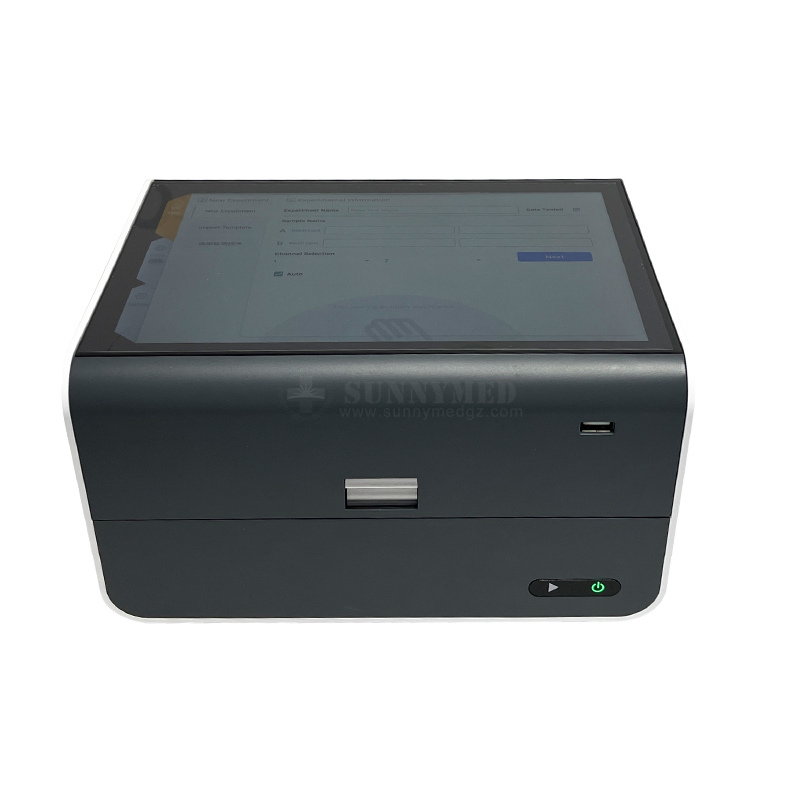

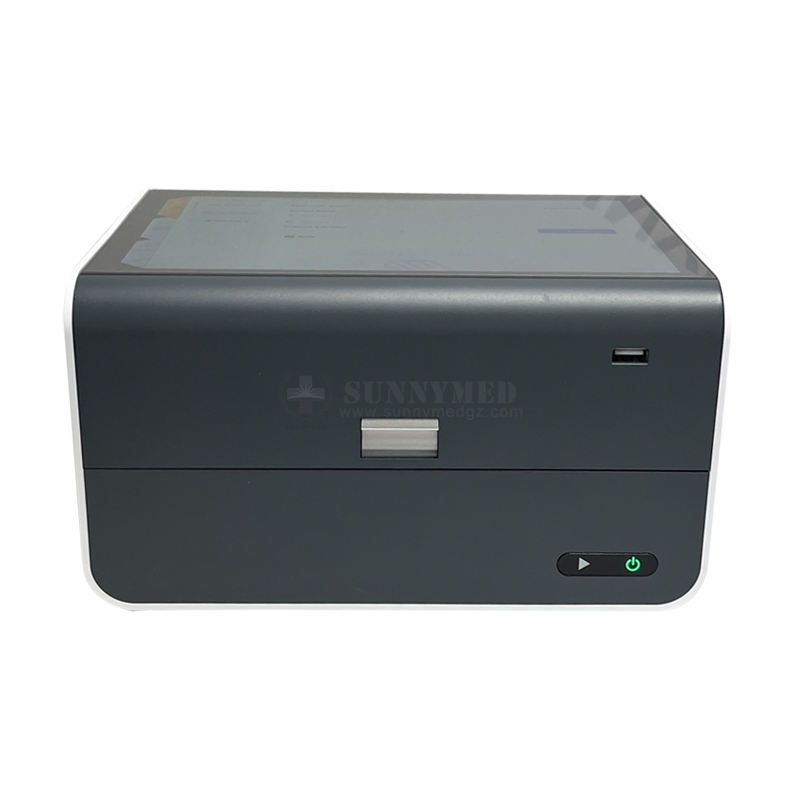

Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
1 / 5
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals
Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals

Sy-W007-1 Popular Vet PCR System Analyzer 4-Channel Imaging Fluorescence Rapid Detection Equipment for Animals

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO. SY-W007-1
Product Name Portable Qpcr System
Detection Capacity up to 4 Targets Per Well
Minimum Threshold 3 Copies
Dynamic Range >1.0e9
Signal Interface USB 2.0
Transport Package Carton
Product Overview

Popular Vet PCR System Analyzer

4-channel imaging fluorescence rapid detection equipment for animals

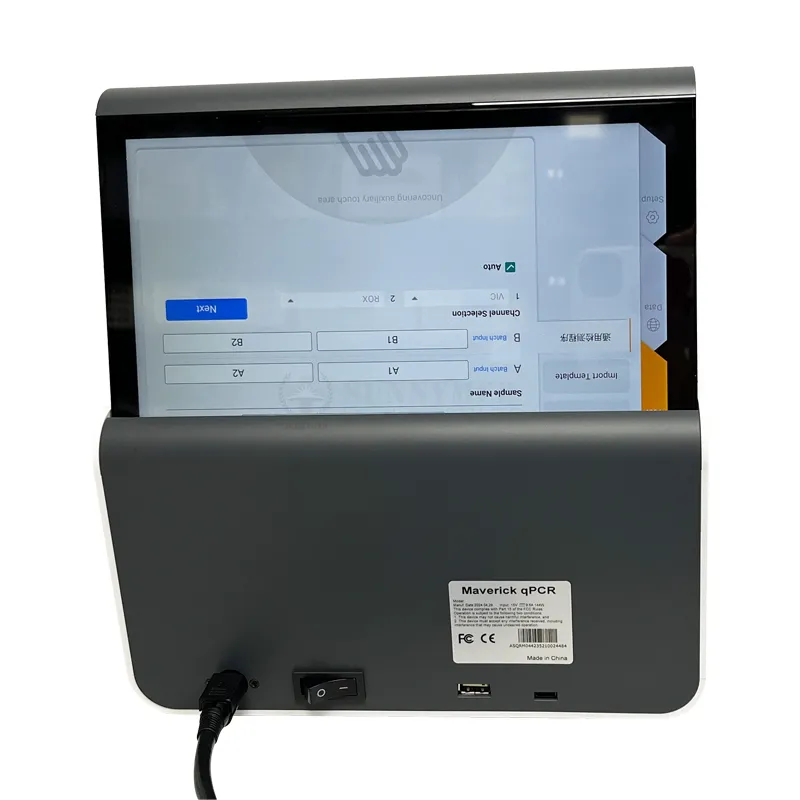

Vet PCR System 1

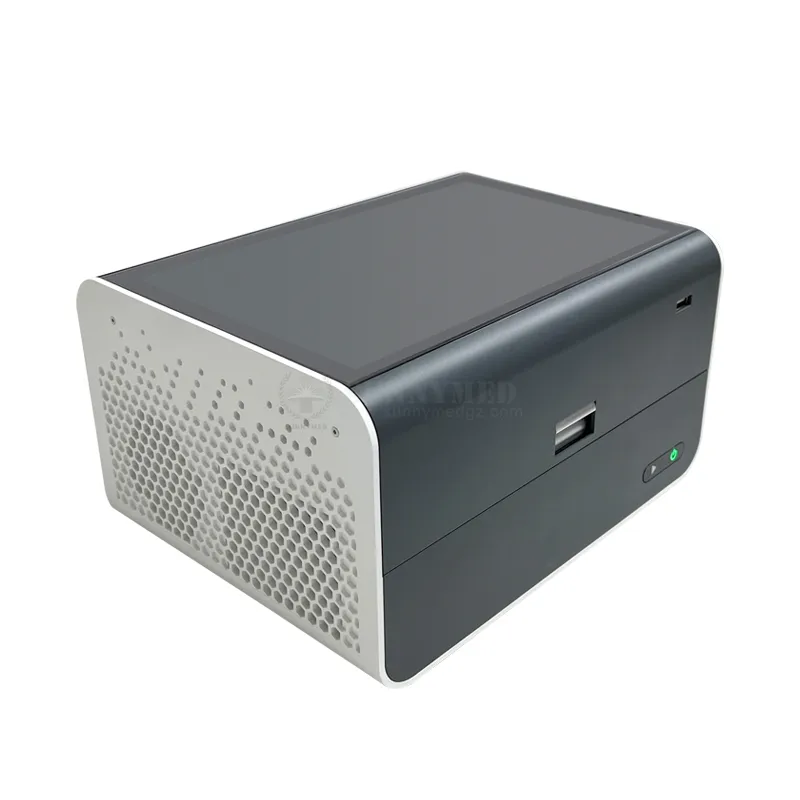

Vet PCR System 2
Technical Specifications
Capacity (# of wells) 8
Channels Up to 4 (FAM/SYBR Green, JOE/HEX/VIC/TET, ROX/Texas Red, CY5/LIZ/Cy5.5)
Multiplex Capability Up to 4 targets per well
Excitation Source High endurance LED
Detector Ultra-low-light CMOS bio-imaging chip
Thermal System Solid-state, Peltier-based
Reaction Volume 10uL - 60uL
Temperature Uniformity Within ±0.25°C at annealing stage
Core Features & Benefits
Feature Image
  • High Performance: Portable real-time quantitative PCR system.
  • Advanced Optics: 4-channel direct imaging with ultra-low-light CMOS sensor.
  • Peltier-powered: Fast thermal cycling for rapid results.
  • Broad Compatibility: Fully compatible with standard qPCR assays and consumables.
  • Rugged Design: No internal moving parts and no need for calibration.
  • Smart Software: Intuitive cross-platform software with cloud connectivity.
  • Efficiency: Low power consumption with external 16V supply.
Workflow & Visuals
Visual 1

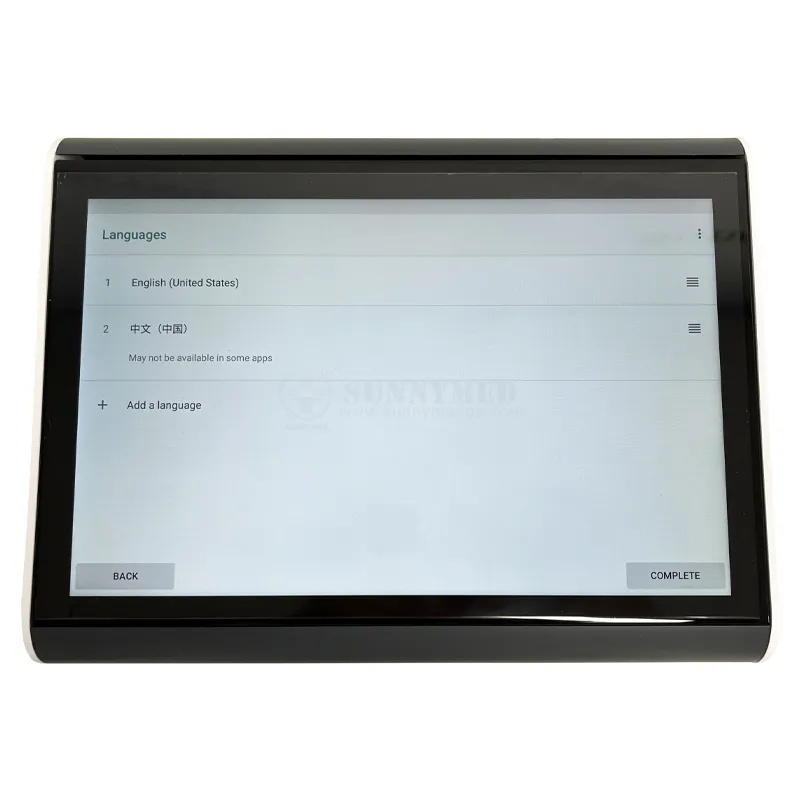

Visual 2
Visual 3

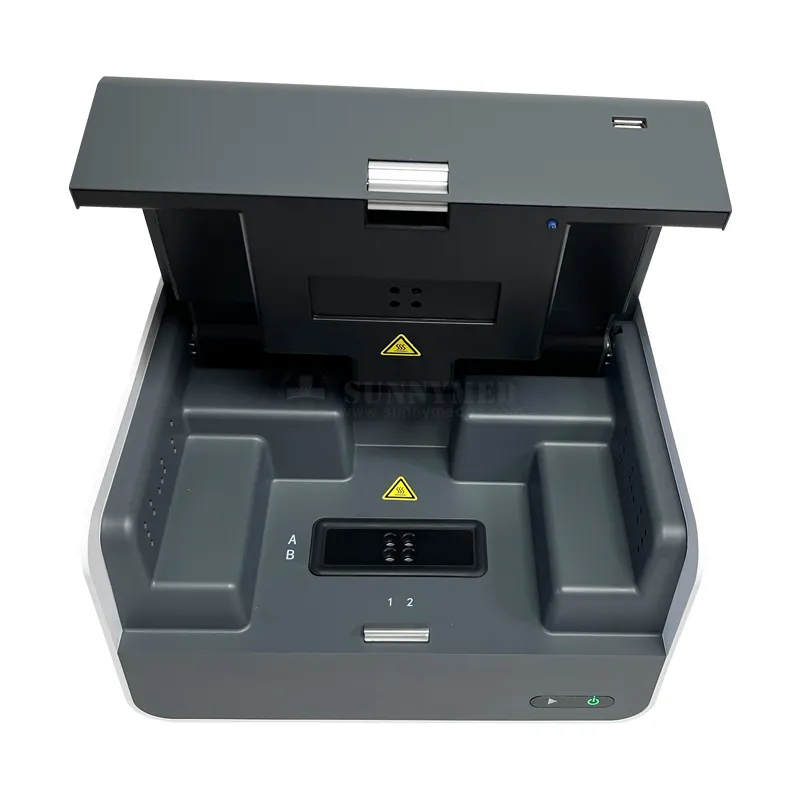

Visual 4
Visual 5
Packaging & Delivery
Packaging 1

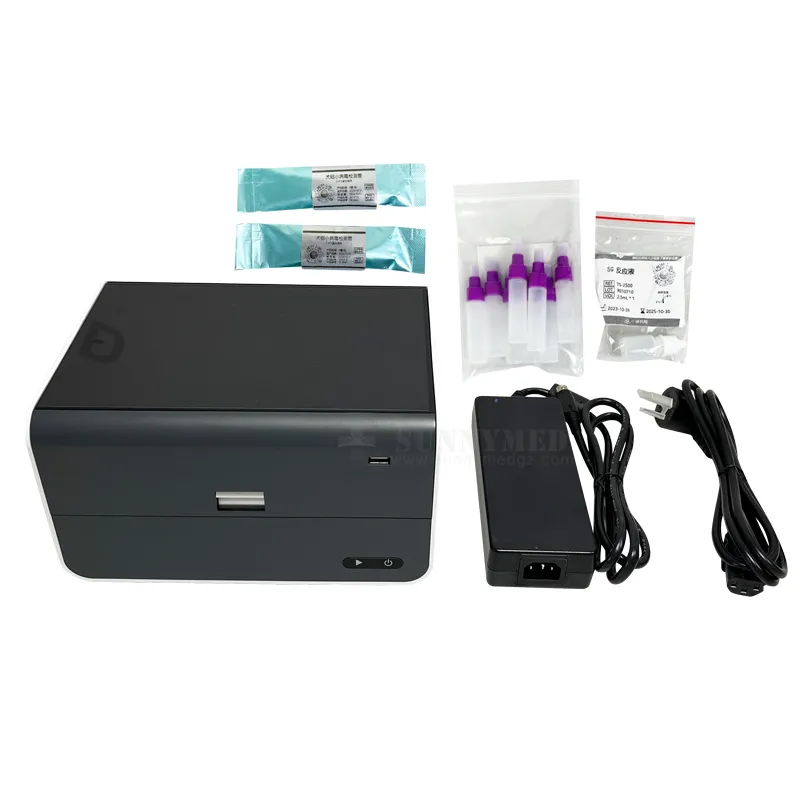

Packaging 2
Frequently Asked Questions
How can I purchase the Portable PCR System?
You can place an order directly through our sales team or via our online ordering platform for efficient processing.
What payment methods are supported?
We accept multiple payment options including Trade Assurance, Credit Card, PayPal, T/T Bank Transfer, Western Union, and L/C.
How long does the delivery take?
Ready stock items are typically processed within 24 hours. For OEM orders, the lead time is generally 2-7 working days depending on requirements.
Are there tutorials available for operation?
Yes, we provide comprehensive video tutorials covering installation, operation, repair, and maintenance. We also offer real-time online video training.
What is the warranty period for the equipment?
The system comes with a warranty ranging from 12 to 60 months, supported by an after-sales response team that replies within 8 hours.
What type of samples can be tested?
The system is designed for point-of-care molecular diagnostics (POCT), food safety, environmental testing, and research laboratory use.
