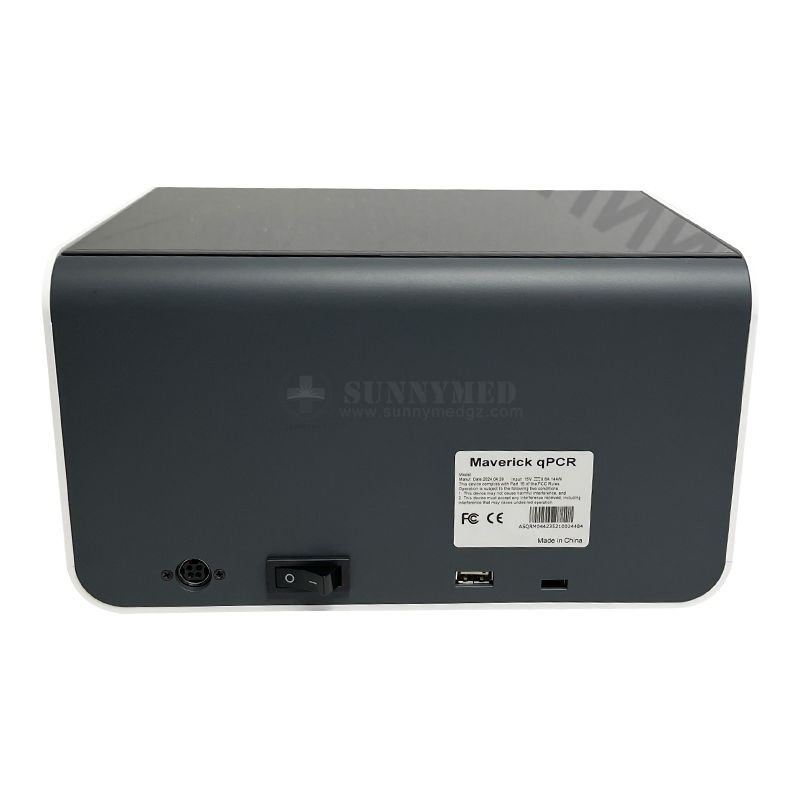

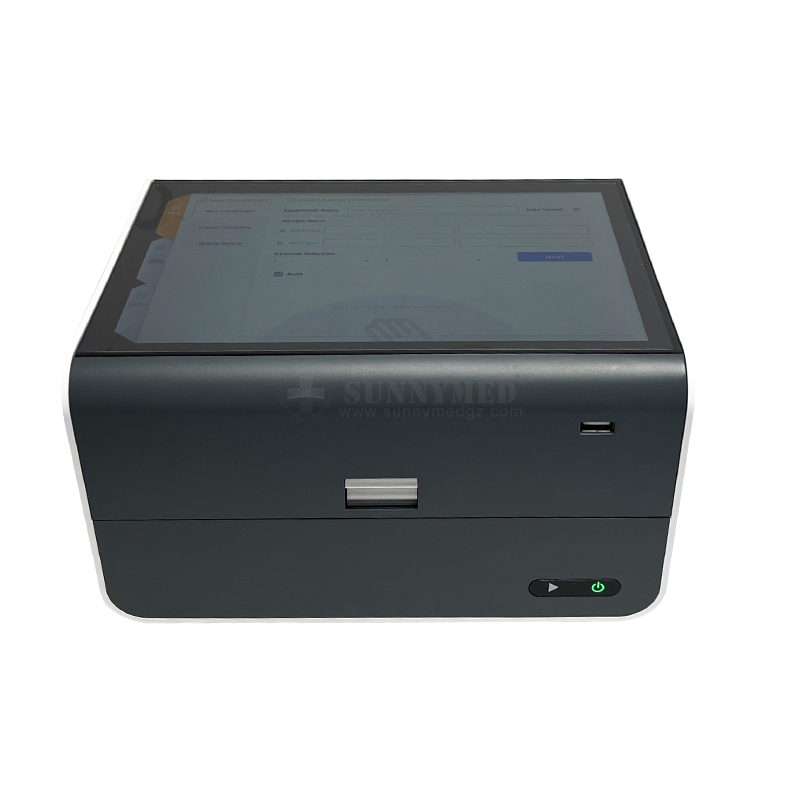

SY-W007-1 Popular Vet PCR System Analyzer 4-channel Imaging Fluorescence
| Parameter | Description |
|---|---|

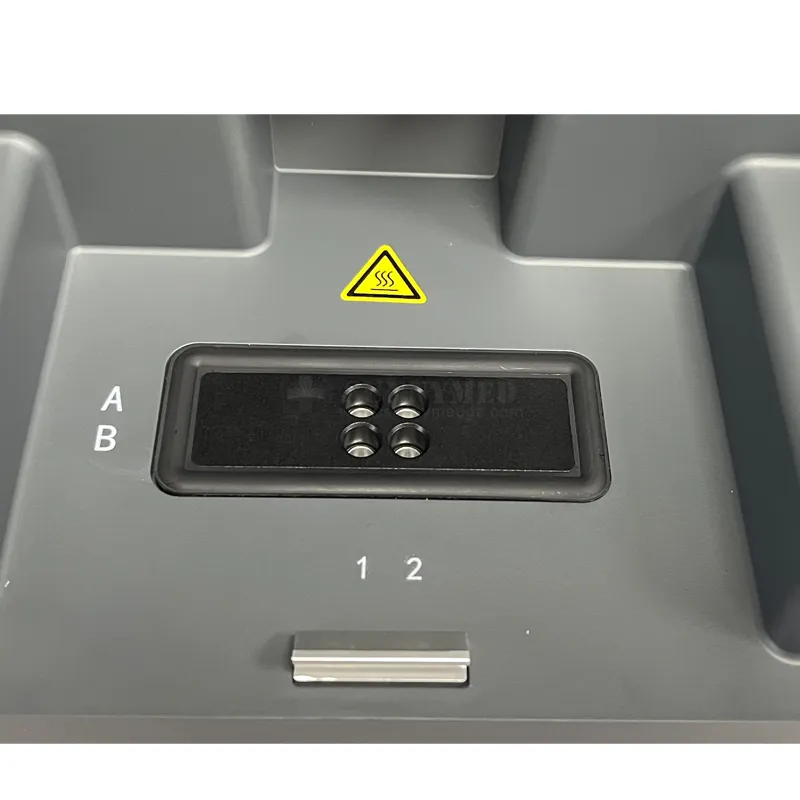

| Capacity (# of wells) | 8 |
| Channels (# of Fluorophores) | Up to 4 (FAM/SYBR Green, JOE/HEX/VIC/TET, ROX/Texas Red, CY5/LIZ/Cy5.5) |
| Multiplex Capability | Up to 4 targets per well |
| Minimum Detection Threshold | 3 copies |
| Dynamic Range | >1.0E9 |
| Signal Interface | USB 2.0 |
| Excitation Source | High endurance LED |
| Detector | Ultra-low-light CMOS bio-imaging chip |
| Thermal System | Solid-state, Peltier-based |

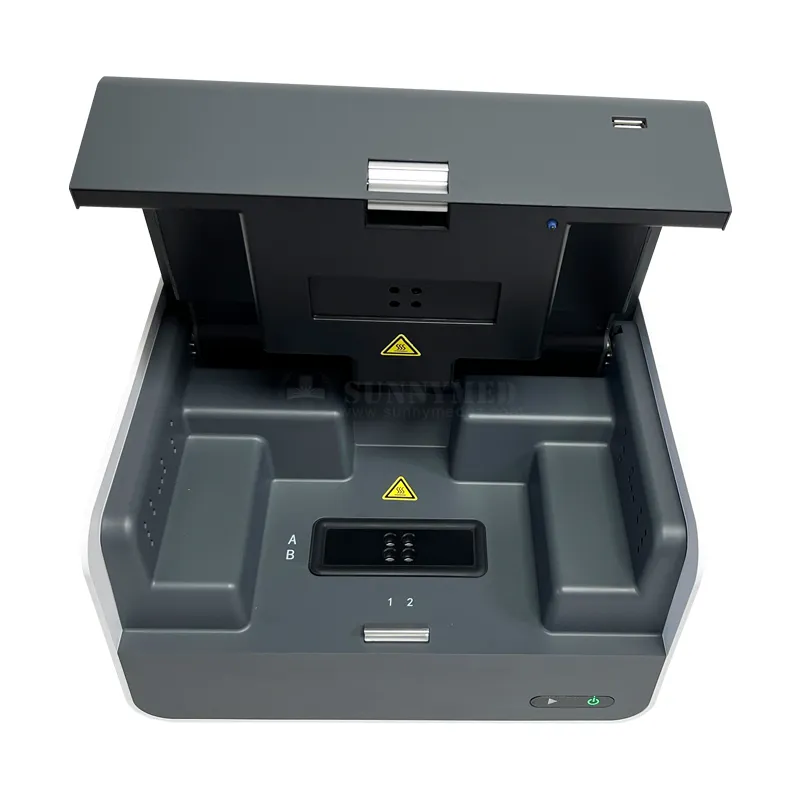

| Tube/Plate Formats | 0.2mL, 4 or 8-tube strip |
| Reaction Volume | 10uL - 60uL |
| DNA Probes Supported | DNA binding dyes (e.g. SYBR-Green), hydrolysis probes (e.g. TaqMan), hybridization probes |
| Excitation/Emission Range | 460nm - 670nm / 510nm - 720nm |
| Temperature Uniformity | Within ±0.25°C at annealing stage |

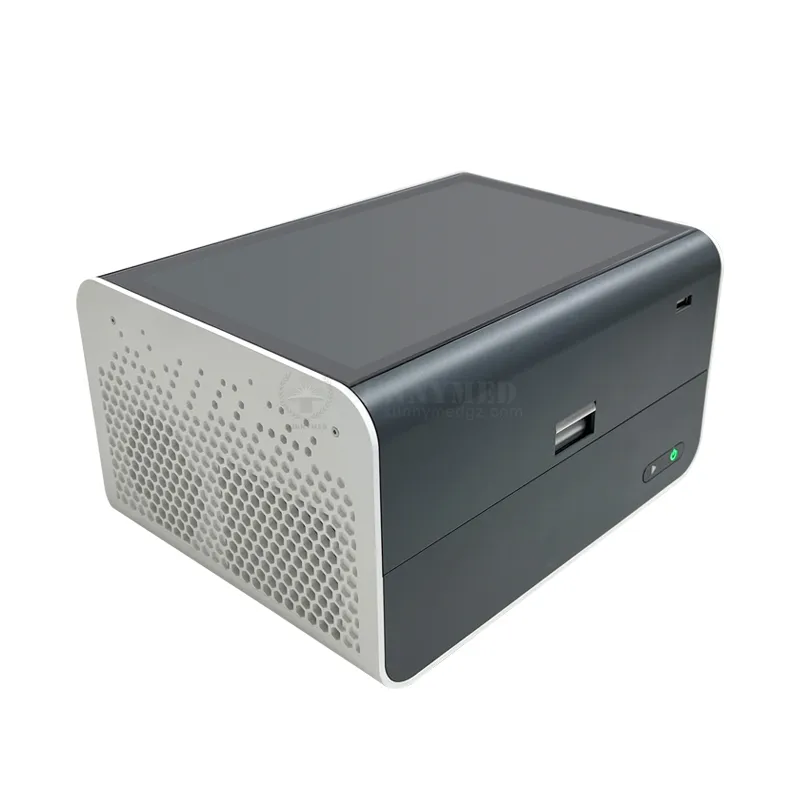

➜ High Performance: Portable real-time quantitative PCR system equipped with a 4-channel direct imaging fluorescence optical system.
➜ Advanced Sensing: Utilizes an ultra-low-light CMOS bio-imager sensor and a fast Peltier-powered thermal cycler.
➜ Versatility: Optimally suited for applications where portability, minimal space, and fast time-to-result are required.
➜ Application Areas: Point-of-care molecular diagnostics test (POCT), food safety, environmental testing, agriculture, and research labs.

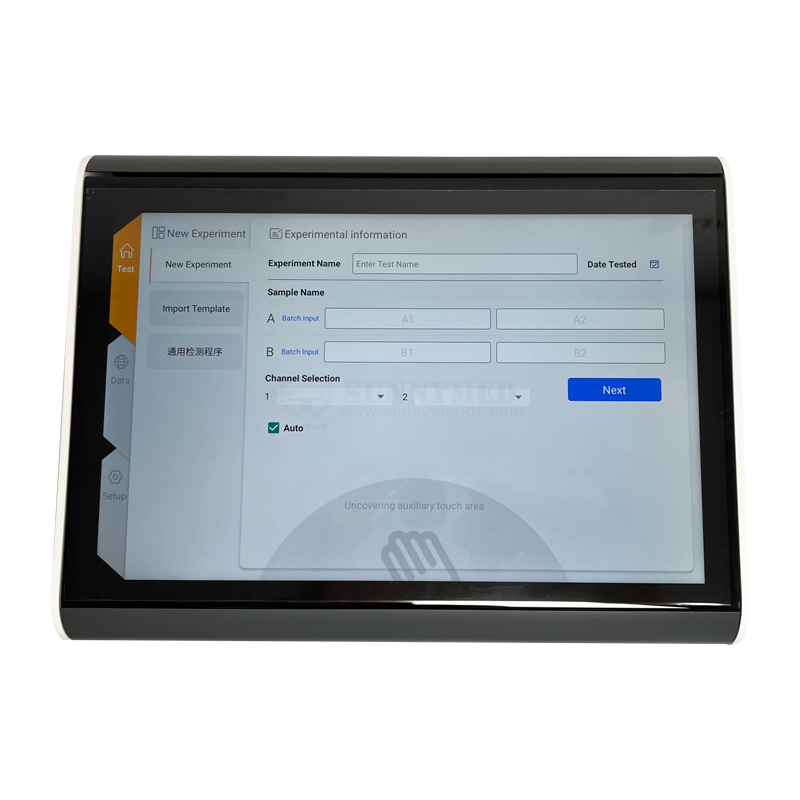

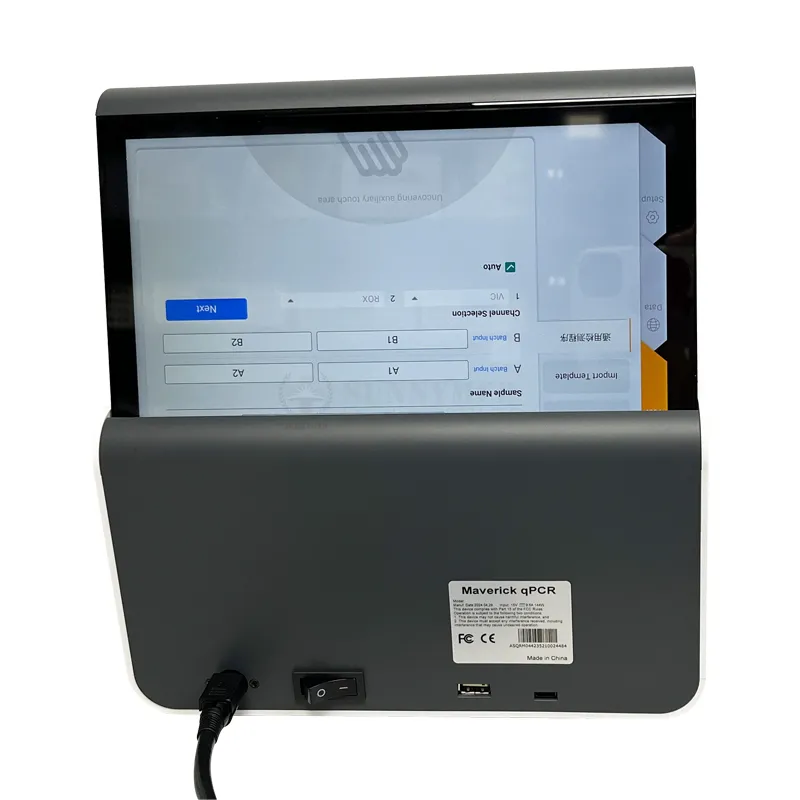

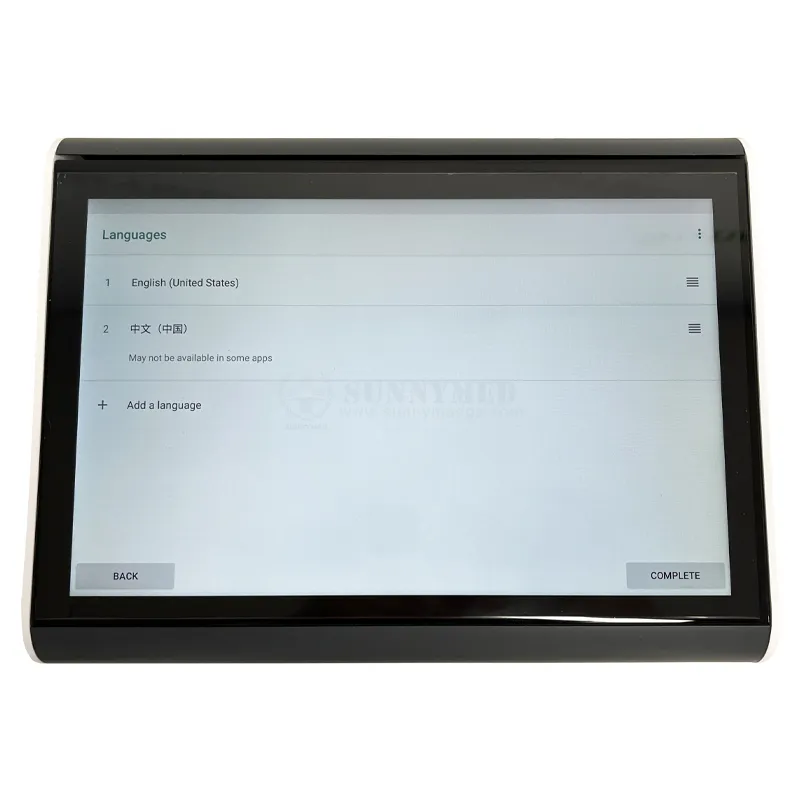

➜ User Friendly: Intuitive cross-platform software with cloud connectivity; low power consumption (External 16V supply, < 150W).
✔ Order Processing: Ready stock dispatched within 24 hours; OEM orders take 2-7 working days.
✔ Quality Assurance: Special one-to-one inspection service before arranging delivery.
✔ User Support: Video tutorials provided for installation, operation, repair, and maintenance.
✔ Training: Real-time online video calls for pre-sales and after-sales training.
✔ Warranty: Coverage for 12-60 months with technical reply within 8 hours.
