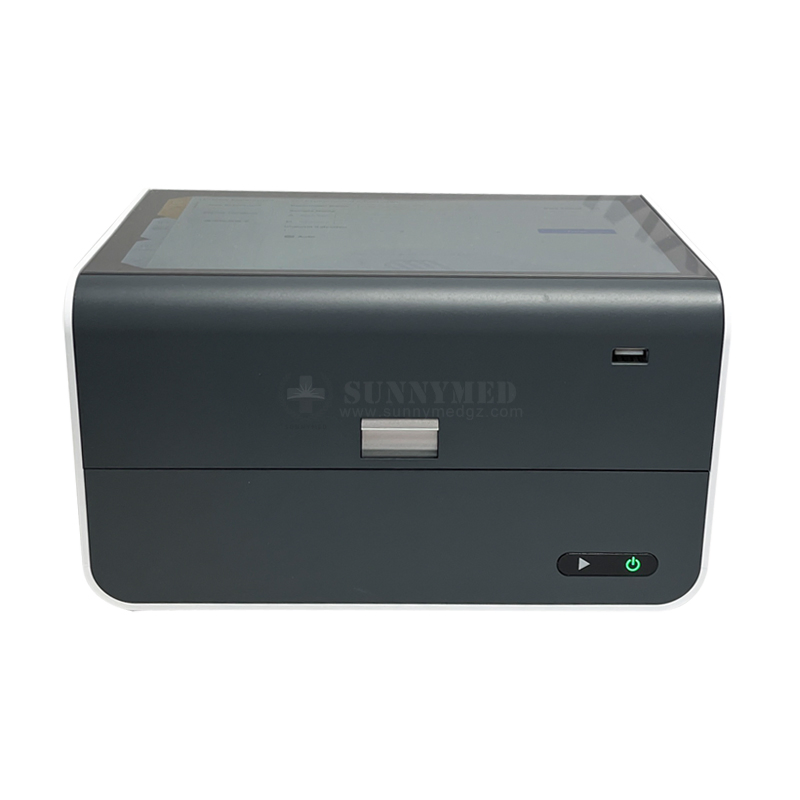

Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
1 / 5
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System

Sy-W007-1 Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
Sy-W007-1
Product Name
Portable Qpcr System
Capacity
up to 4 Targets Per Well
Detection Threshold
3 Copies
Dynamic Range
>1.0e9
Signal Interface
USB 2.0
Transport Package
Carton
Origin
China
Production Capacity
500 pieces/Year
Product Overview

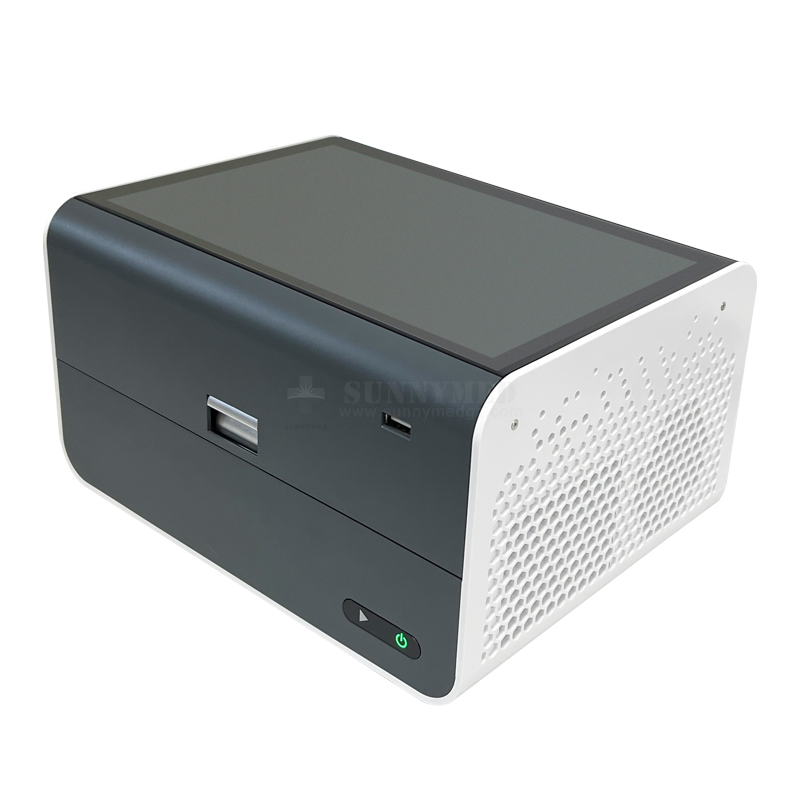

Popular Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System

PCR System View 1

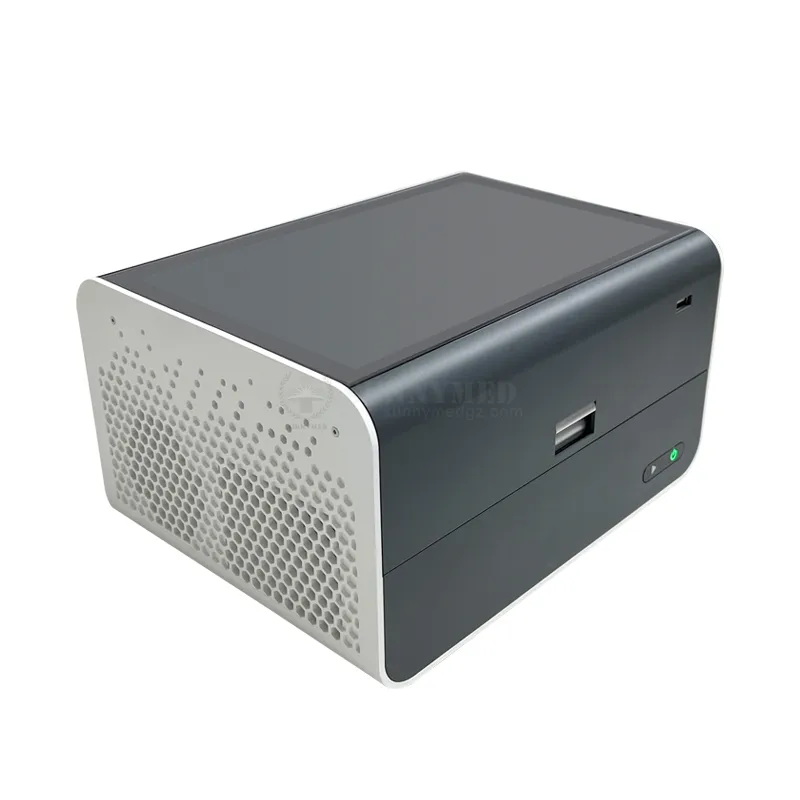

PCR System View 2
Technical Parameters
Capacity (# of wells)8
Channels (# of Fluorophores per well)Up to 4 (1. FAM/SYBR Green; 2. JOE/HEX/VIC/TET; 3. ROX/Texas Red; 4. CY5/LIZ/Cy5.5)
Multiplex capabilityUp to 4 targets per well
Minimum detection threshold3 copies
Dynamic range>1.0E9
Excitation sourceHigh endurance LED
DetectorUltra-low-light CMOS bio-imaging chip
Thermal systemSolid-state, Peltier-based

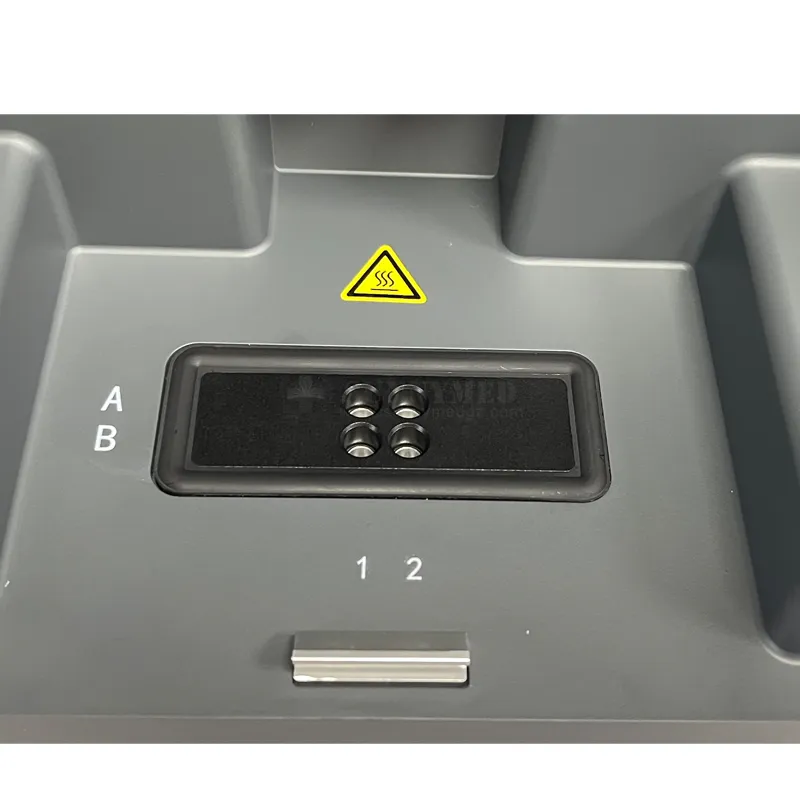

Tube/plate formats0.2mL, 4 or 8-tube strip
Reaction volume10uL - 60uL
DNA probes supportedDNA binding dyes (e.g. SYBR-Green), hydrolysis probes (e.g. TaqMan probe) and hybridization probes (e.g. FRET probes)
Temperature UniformityWithin ±0.25°C at annealing stage
Key Features & Benefits
Feature Image
  • ✔ Portable high-performance real-time quantitative PCR system.
  • ✔ 4-channel direct imaging fluorescence optical system with ultra-low-light CMOS sensor.
  • ✔ Fast Peltier-powered thermal cycler for quick results.
  • ✔ Point-of-care molecular diagnostics (POCT) ready.
  • ✔ Fully compatible with standard qPCR assays and consumables.
  • ✔ Compact and rugged design with no internal moving parts.

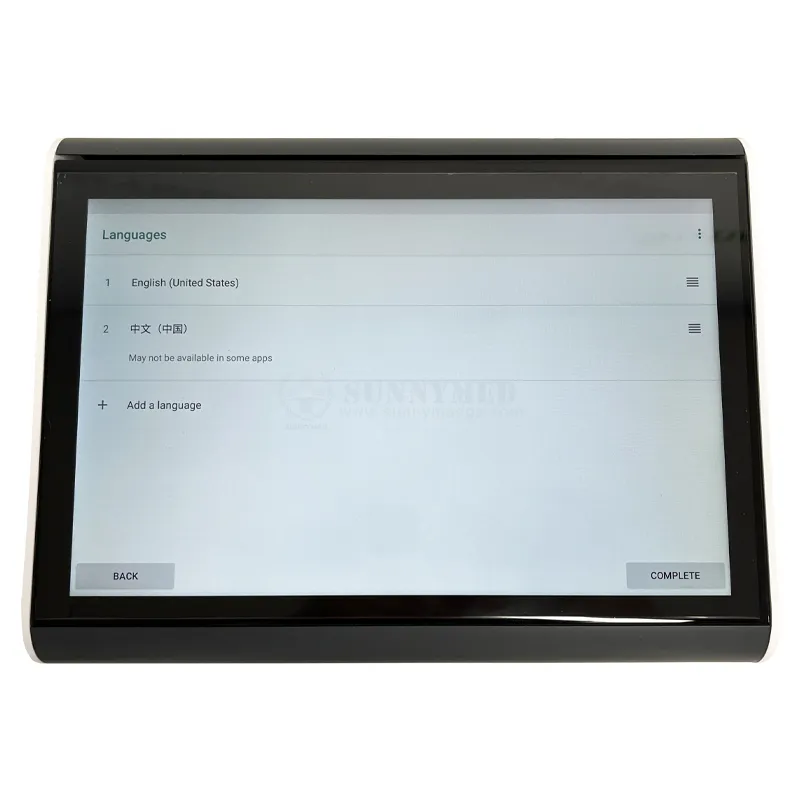

  • ✔ Intuitive cross-platform software with cloud connectivity.

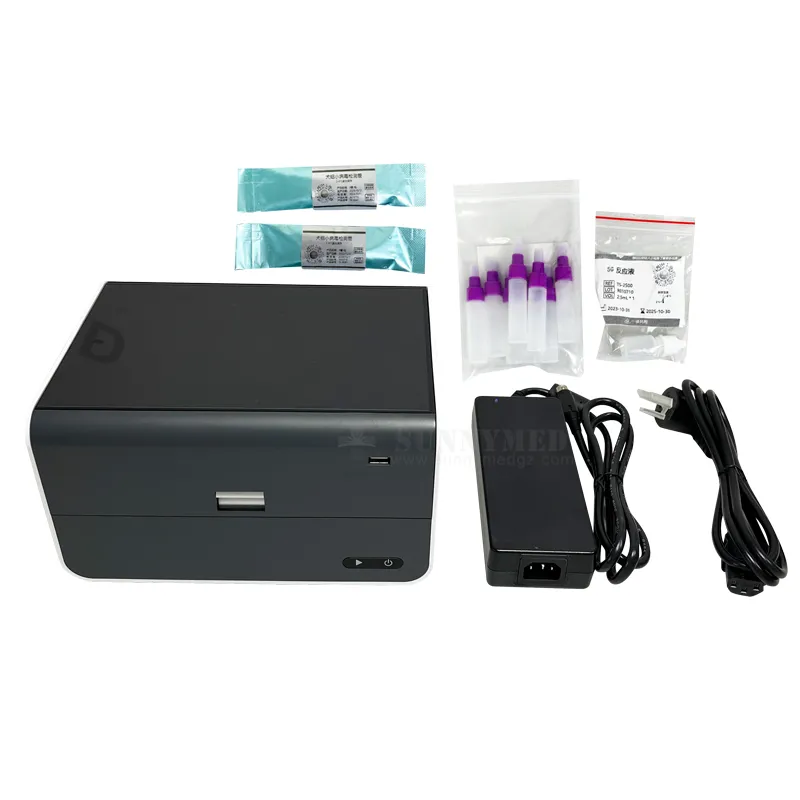

Packaging & Shipping
Inspection Service
Frequently Asked Questions
What is the minimum detection threshold for this qPCR system?
The system features a high sensitivity with a minimum detection threshold of 3 copies.
How many fluorescence channels does the device support?
It supports up to 4 channels, covering common dyes like FAM/SYBR Green, JOE/HEX/VIC, ROX/Texas Red, and CY5/Cy5.5.
Is the system compatible with standard lab consumables?
Yes, it is fully compatible with standard 0.2mL PCR tubes, as well as 4-tube or 8-tube strips.
What is the lead time for orders?
Ready stock can be prepared within 24 hours. For OEM requirements, the typical turnaround is 2-7 working days.
What support is available for installation and operation?
We provide comprehensive video tutorials covering installation, operation, and maintenance, along with real-time online video call support.
What are the power requirements for the portable unit?
The system operates on an external 16V supply with low power consumption of less than 150W active power.
