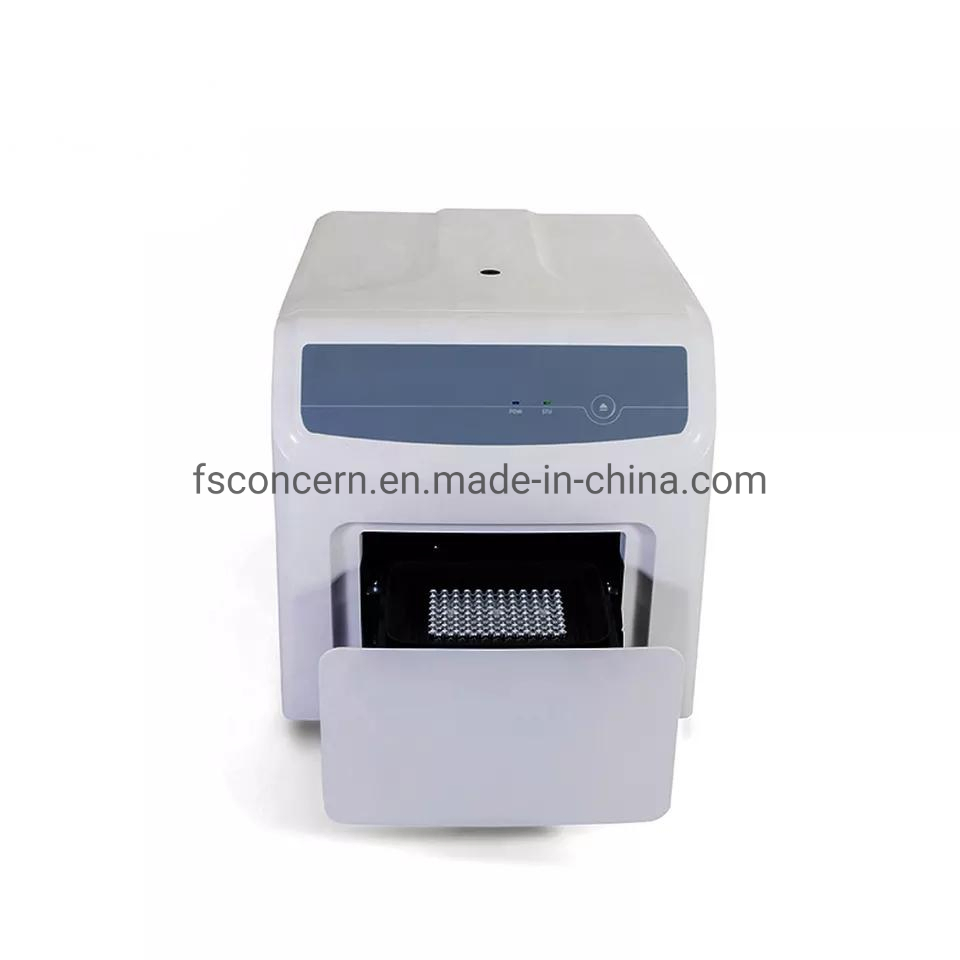

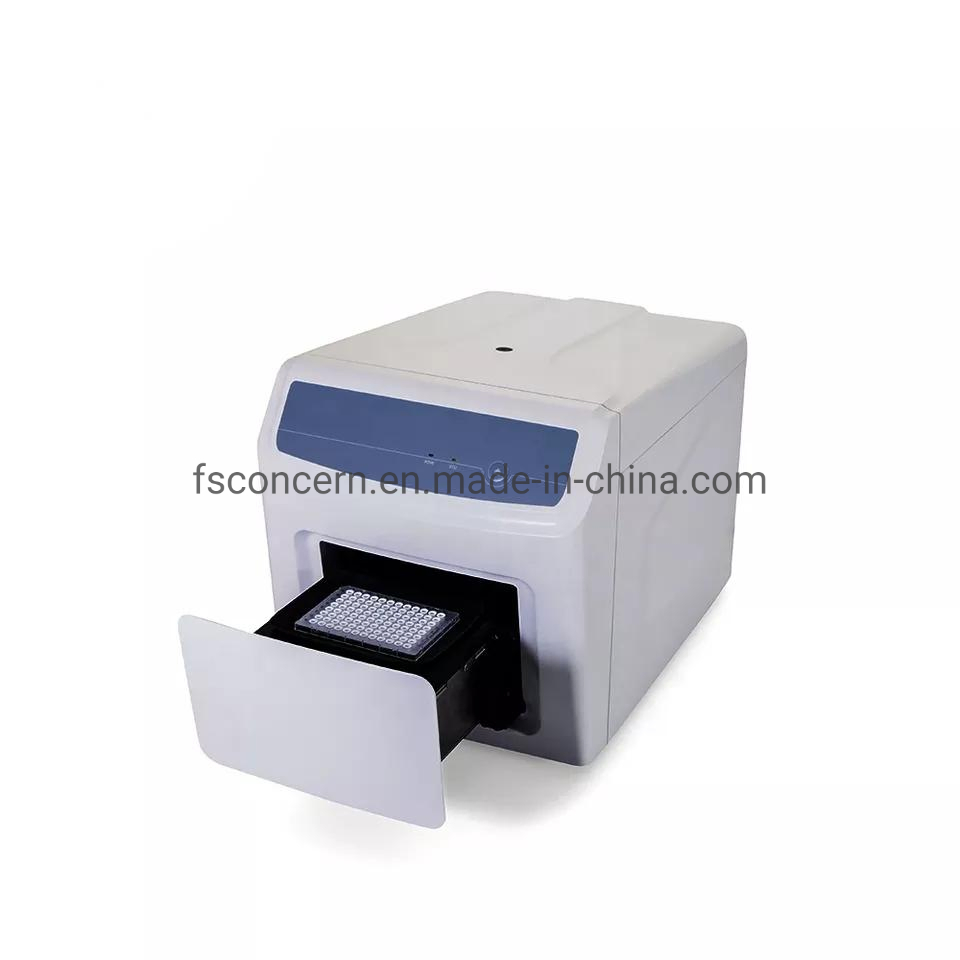

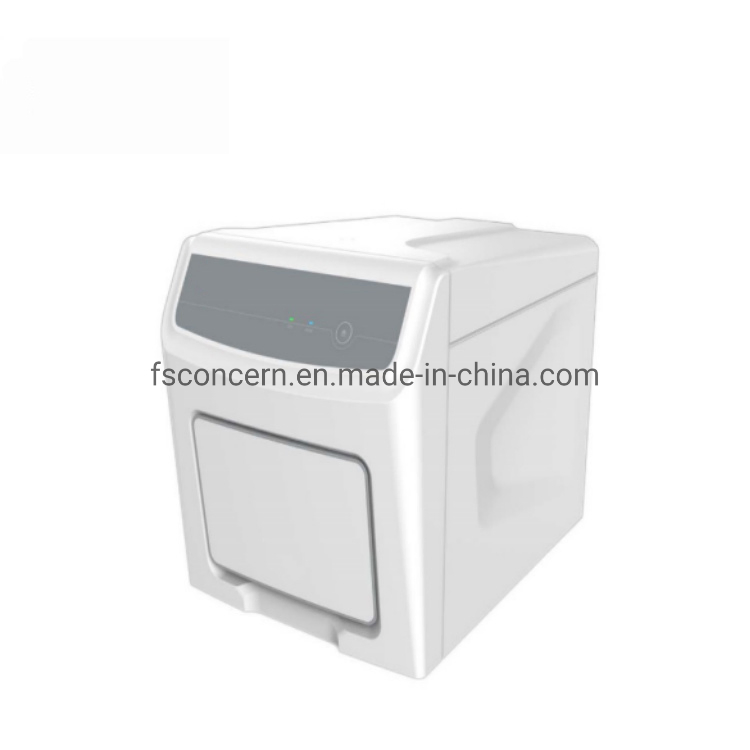

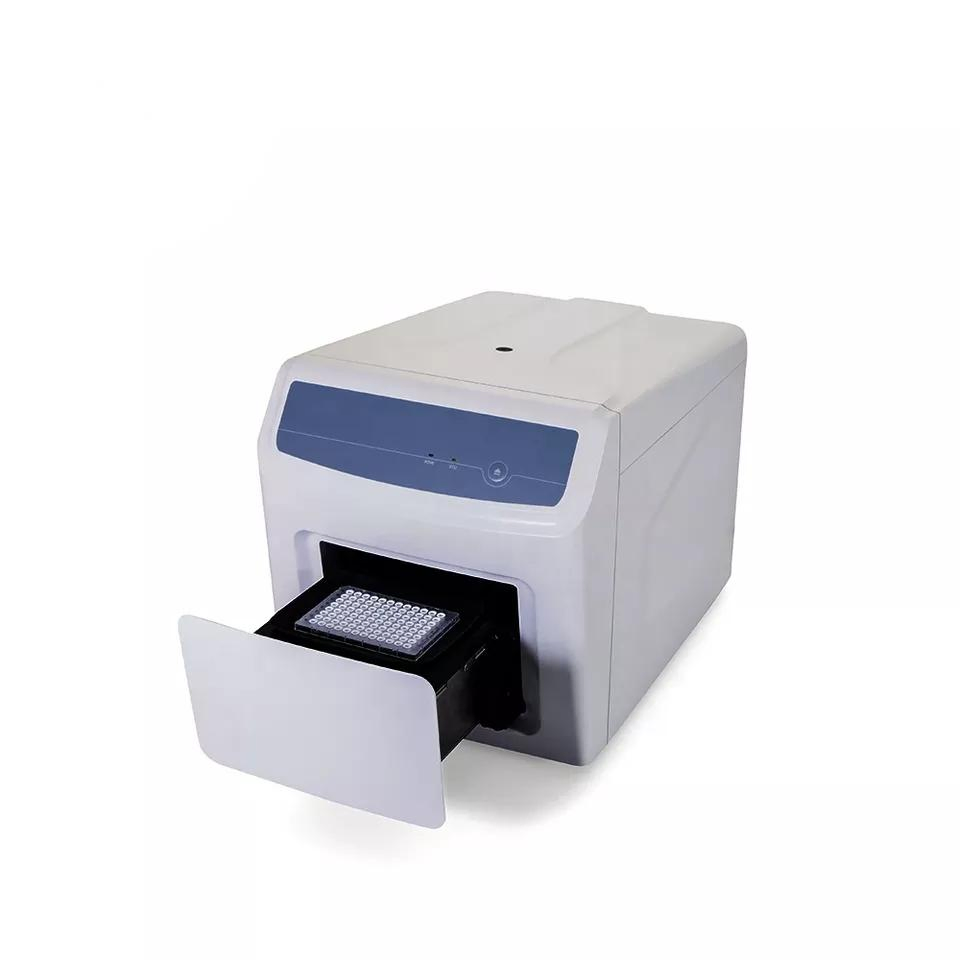

Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
1 / 5
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer
Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer

Hospital Laboratory 4 6 Channels Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer

Classification: Biological Diagnostics
Type: PCR Analysis System
Certification: CE, ISO13485
Send Inquiry

Product Description

Basic Specifications
Model NO.
CCL-PCR96
Channel
4/6
Transport Package
Standard Export Package
Specification
Standard
Origin
China
Production Capacity
500 units/Month

Hospital Laboratory Fully Auto Real Time Fluorescence Quantitative Rapid Test PCR Analyzer

Model: CCL-PCR96

PCR Analyzer Main Image
Key Features
Up to 6 fluorescence detection channels allowing multiplex PCR.
Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.
New optical scanning detection system with time-resolved signal separation technology.
Innovative scanning method for high-precision quantitative analysis.
Unique edge temperature compensation technology for uniformity.
User-friendly software designed for clinical and research applications.
Technical Specifications
Temperature Control System
Sample capacity 96
Reaction volume 10-50 μl
Thermal cycle technology Peltier
Max. Heating/Cooling rate 6.0° C/s
Heating temperature range 4 - 100 °C
Temperature accuracy ± 0.2°C
Temperature uniformity ±0.2ºC @60ºC, ±0.3ºC @95ºC
Temperature gradient setting range 30-100°C
Detection System
Excitation light source 4/6 monochrome high efficiency LEDs
Detection device PMT
Detection mode Time-resolved signal separating technology
Excitation/detection wavelength 455-650nm / 510-715nm
Fluorescent channels 4/6 channels
Supported dyes FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
Sensitivity Single copy gene
Dynamic range 10 orders of magnitude copies

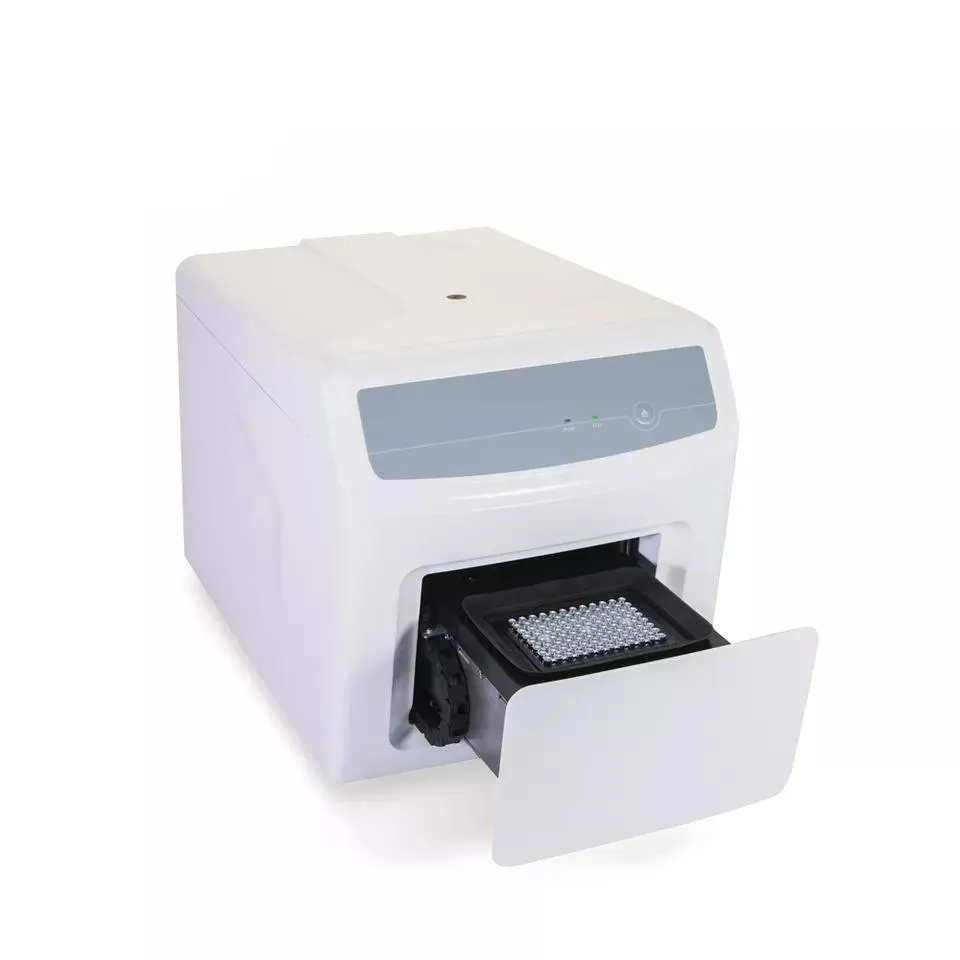

PCR System Detail 1
PCR System Detail 2
Laboratory Equipment Categories
Laboratory Solutions Hematology Analyzer, Chemistry Analyzer, Coagulometer, Microplate Reader/Washer, Urine Analyzer, Lab Refrigerator, HbA1c Analyzer, Specific Protein Analyzer, Blood Gas Analyzer/POCT, Immunoassay Analyzer, Electrolytic Analyzer, PCR/Thermocycler, Centrifuges, Lab Incubator, Biosafety Cabinet, Microscope, Spectrophotometer.
Laboratory Equipment Overview
Product List Page 1
Product List Page 2
Frequently Asked Questions
What is the sample capacity of the CCL-PCR96 model?
The system features a 96-well capacity, making it suitable for high-throughput hospital and laboratory testing.
How many fluorescence channels does this PCR analyzer support?
It is available in 4 or 6 fluorescence detection channels, allowing for efficient multiplex PCR analysis.
What is the maximum heating and cooling rate?
The device utilizes advanced Peltier technology to achieve a maximum heating and cooling rate of 6.0° C/s.
Does this system require ROX correction?
No, the new optical scanning system effectively reduces multi-color crosstalk and edge effects, eliminating the need for ROX correction.
What types of dyes are compatible with this equipment?
It supports a wide range of dyes including FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, and Cy5/LIZ.
What is the temperature accuracy of the system?
The system provides high precision with a temperature accuracy of ± 0.2°C, ensuring reliable results for quantitative analysis.
