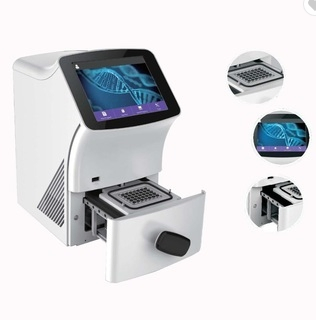

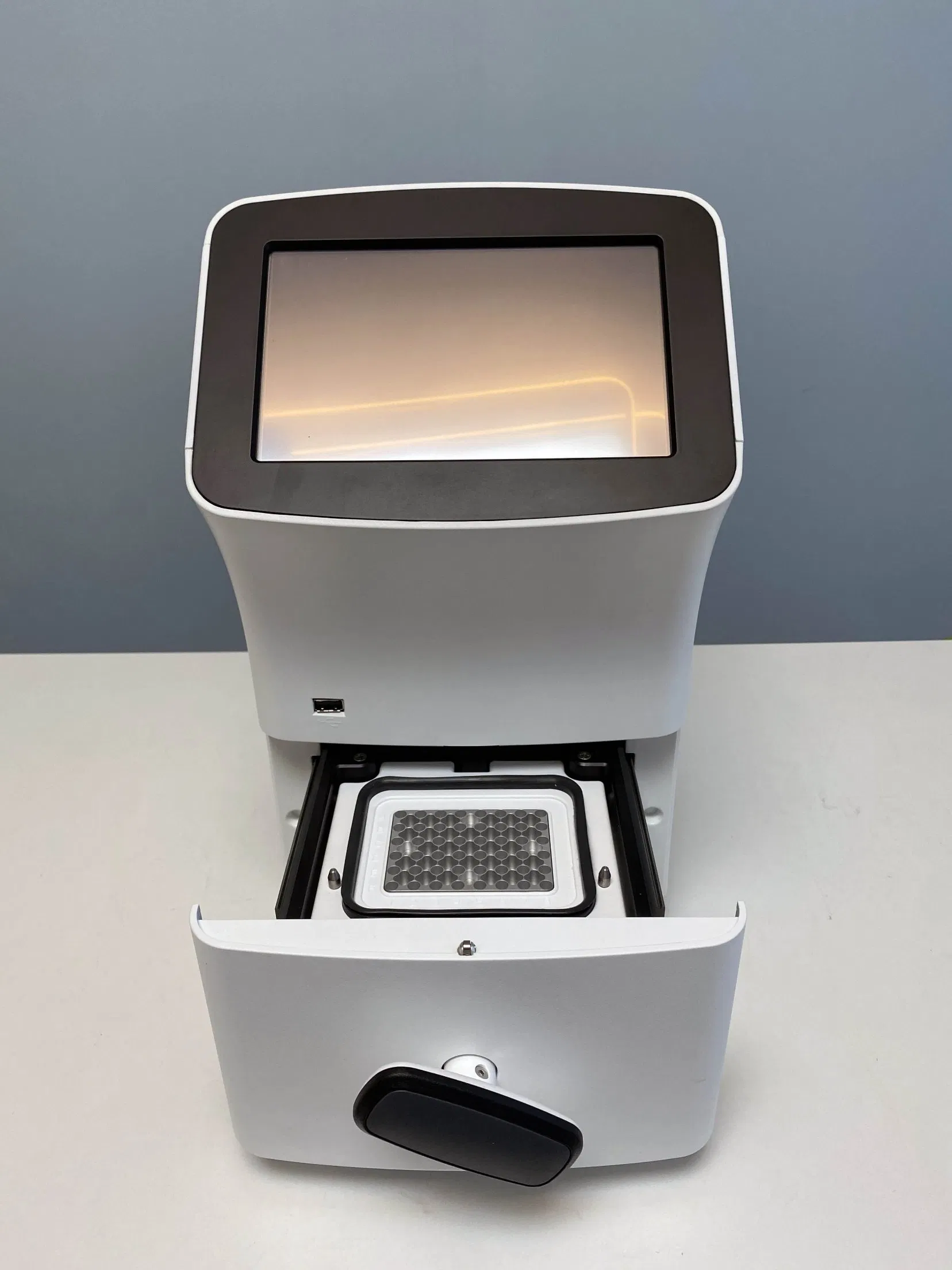

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

1 / 5

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

Advanced Peltier PCR Testing System for Accurate Results

Customization:	Available
Classification:	Biological Diagnostics
Type:	PCR Machine

Send Inquiry

Product Description

Basic Information

Model NO.

CK-1000+

Certification

CE, ISO13485

Group

Middle-aged and Old

Product Name

Real Time PCR Machine

Block Sample Capacity

48-Well * 0.1ml

Reaction Volume

10-50UL (Recommend 20 UL)

Temperature Range

0-105 Degree

Control Mode

Bloq & Calculated Sample

Excitation

Long Life LED Lamps

Detection

CCDs

Net Weight

8.2kg

HS Code

9027899090

Real Time PCR Machine - 4 Channel

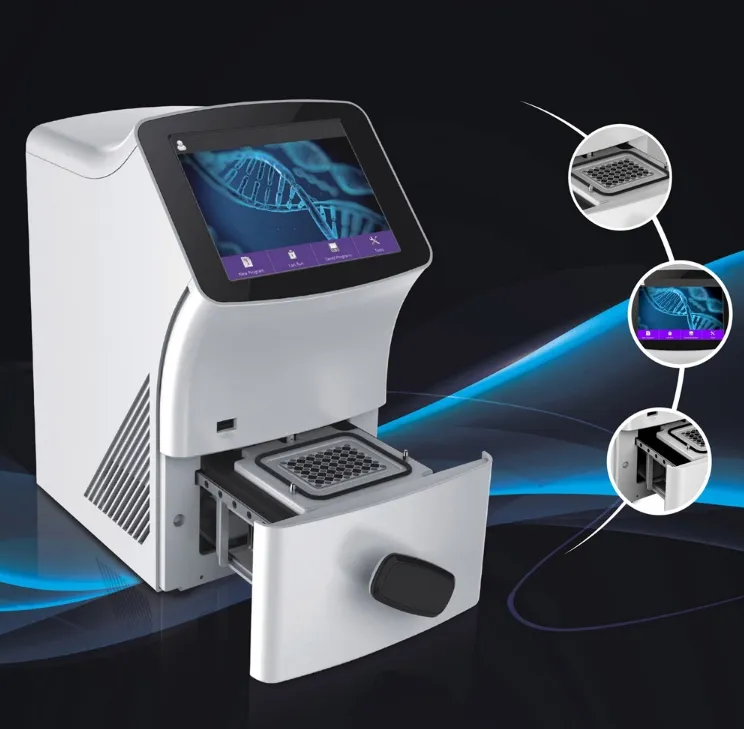

Real Time PCR Machine

Product Parameters

Core Specifications

New powerful Peltier Technology, fast ramping rate up to 7ºC/s.
Sample Block Capacity: 48-wells * 2/4 channels. White PCR tubes compatible for highest sensitivity.
T-Optical™ technology: Reduces background noise and improves fluorescence signal ratio.
Simultaneous detection of wells (non-sequential).
Integrated 7'' TFT LCD and touch screen for standalone operation.
Specialized optical system for qPCR (no moving parts, no fiber optics).
Long life LED lamps with SSLP™ CCD imaging technology.
Temperature gradient function for PCR condition optimization.
Drawer design of sample block for easy plate handling.
Free lifetime software upgrades.

Instrument Performance

Sample Capacity

48-wells * 0.1ml

Reaction Volume

10-50ul (20ul recommended)

Tube Options

Low-profile, white/clear PCR tubes or strips

Control Methods

PC operated or standalone touch screen

Thermal Characteristics

Block Temp Range

0ºC~105ºC

Max Heating Rate

7ºC/s

Max Cooling Rate

5ºC/s

Temp Uniformity

≤±0.2ºC (at 90ºC)

Temp Accuracy

≤±0.1ºC

Gradient Range

30ºC~100ºC

Fluorescence Detection

Channel 1

FAM, SYBR Green

Channel 2

VIC, HEX, JOE, CY3, NED

Channel 3

ROX, TEXAS-RED

Channel 4

CY5

Dynamic Range

1 ~ 10^10

Sensitivity

≥1 copy

Detailed Photos

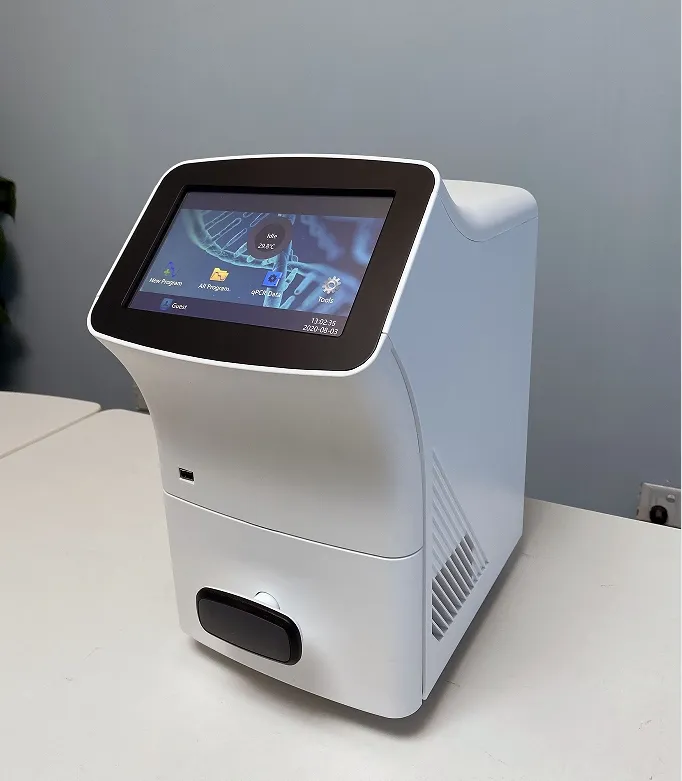

PCR Machine Detail 1

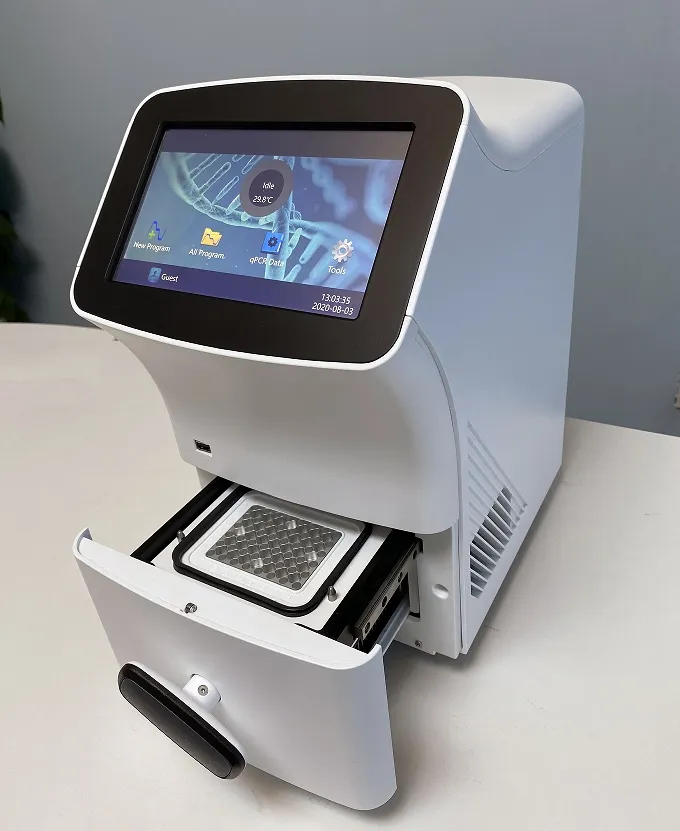

PCR Machine Detail 2

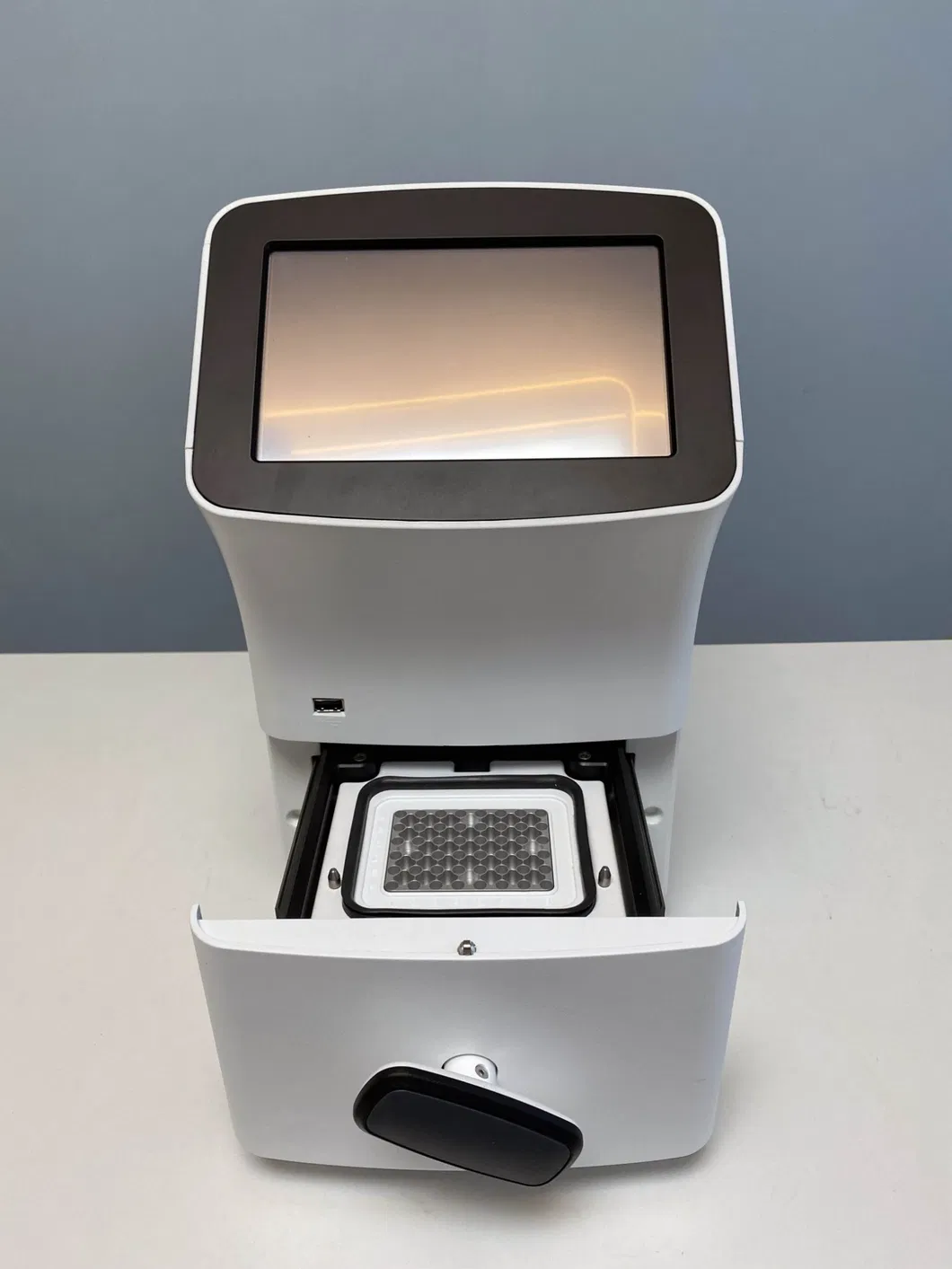

PCR Machine Detail 3

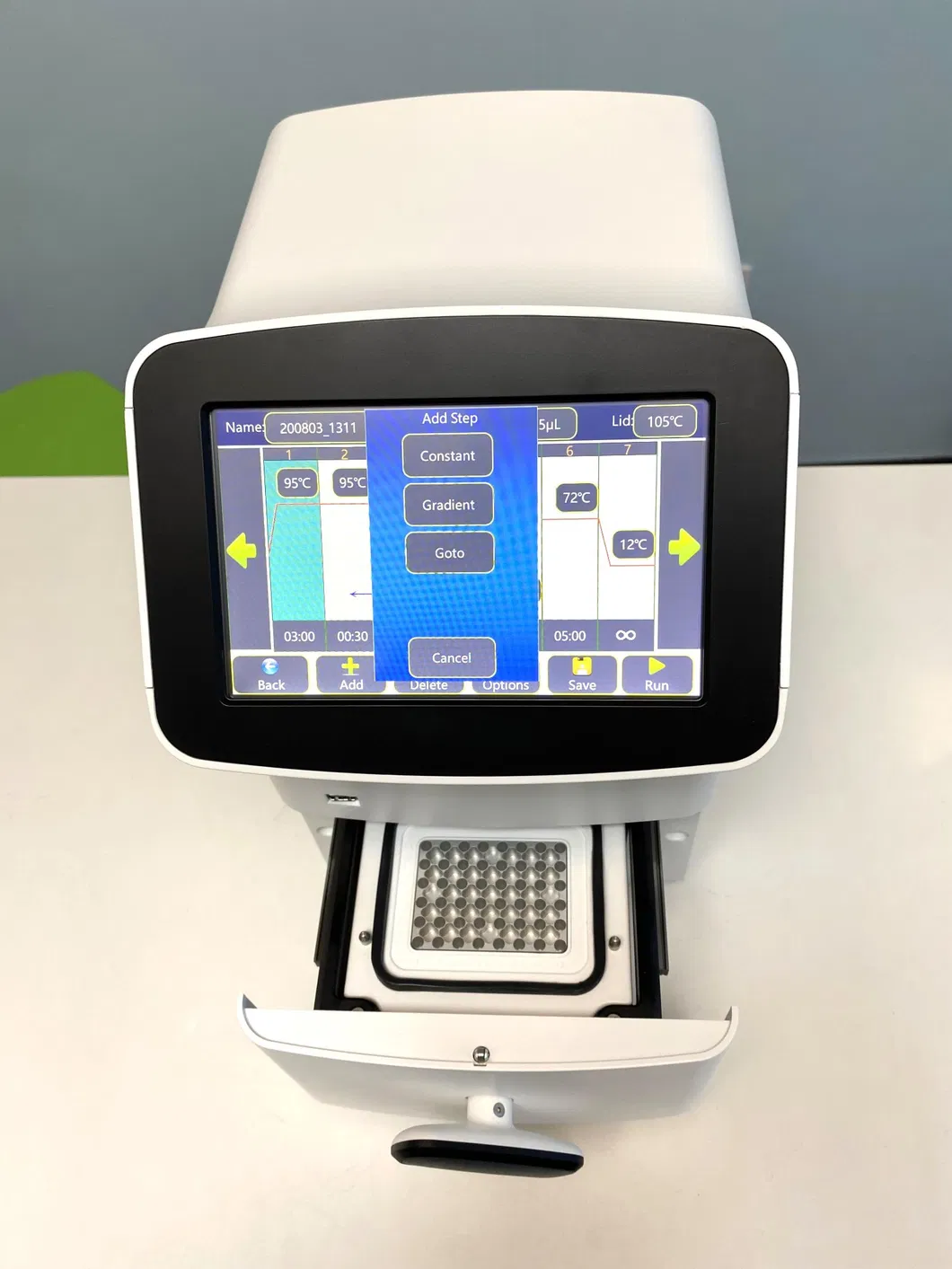

PCR Machine Detail 4

PCR Machine Detail 5

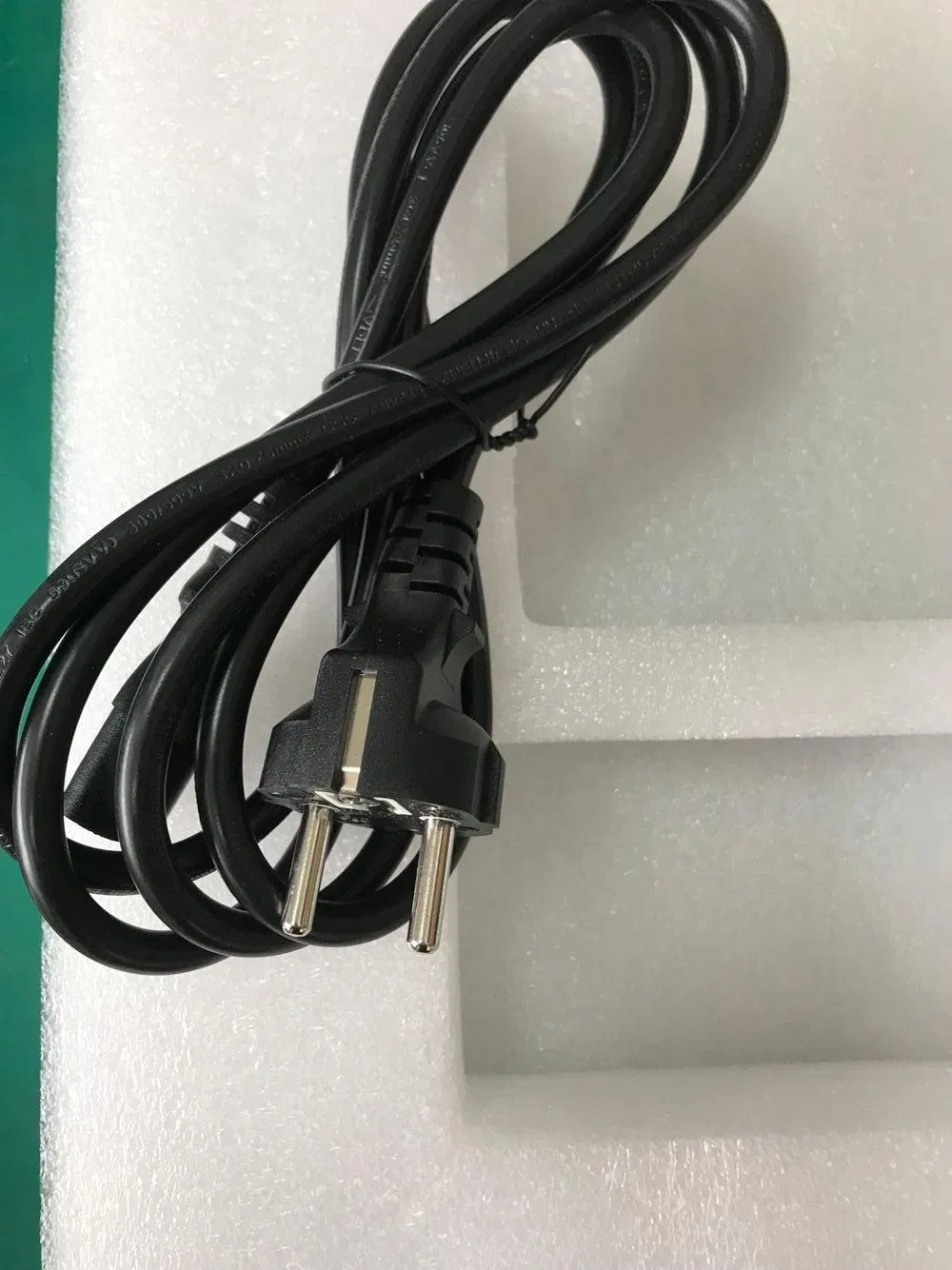

PCR Machine Detail 6

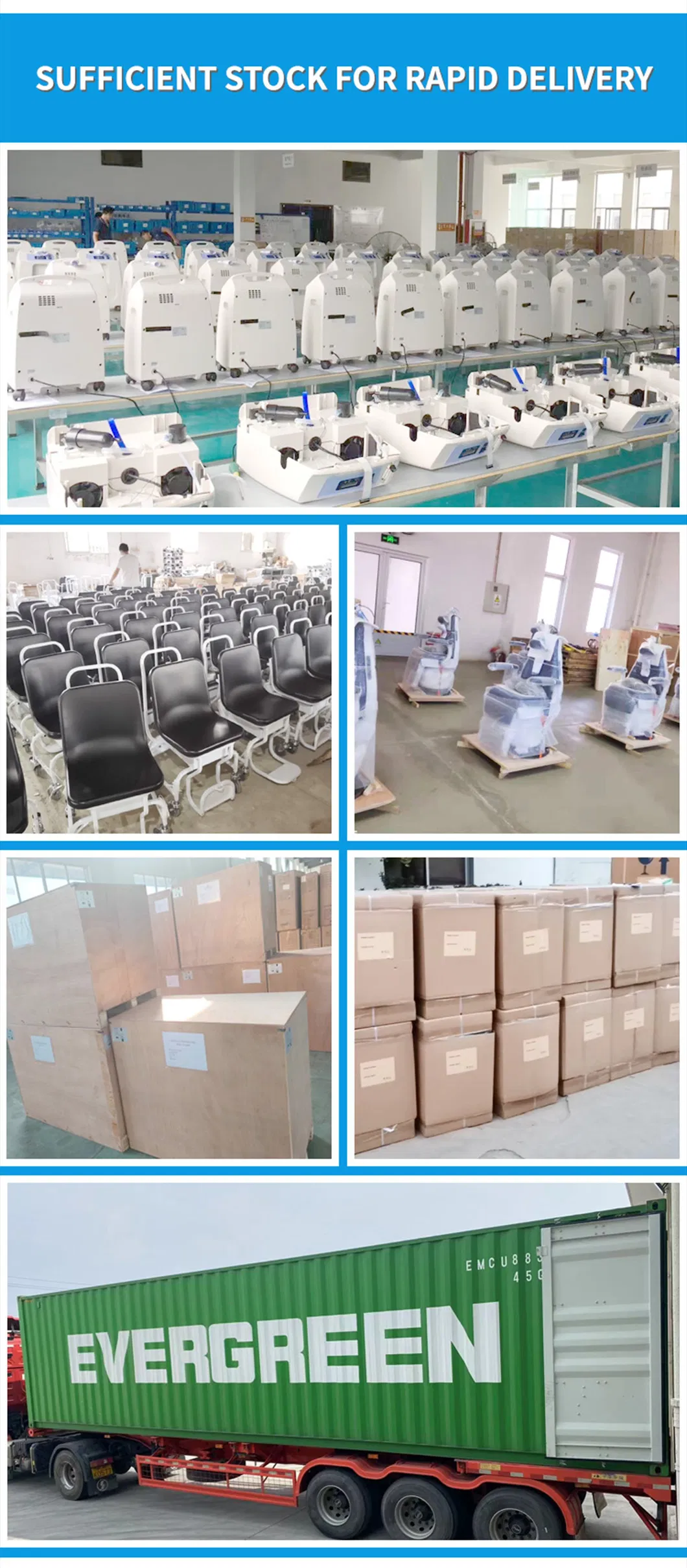

Overview & Facilities

Production Facility 1

Production Facility 2

Frequently Asked Questions

What is the block capacity and sample volume?

The CK-1000+ features a 48-well block capacity (0.1ml) with a recommended reaction volume of 20ul (range 10-50ul).

What are the maximum heating and cooling rates?

The system utilizes powerful Peltier technology to achieve a maximum heating rate of 7ºC/s and a cooling rate of 5ºC/s.

Which fluorescence channels are supported?

It supports 4 channels, including Channel 1 (FAM, SYBR Green), Channel 2 (VIC, HEX, JOE, CY3, NED), Channel 3 (ROX, TEXAS-RED), and Channel 4 (CY5).

Does the machine require a separate computer?

No, the machine is equipped with a self-contained 7'' TFT LCD touch screen for standalone operation, though it can also be operated via PC.

What operating systems are compatible with the software?

The qPCR analysis software is compatible with Windows 7, Windows 10, and Windows XP.

Is there a cost for software updates?

No, the qPCR analysis software can be upgraded for free at any time.
