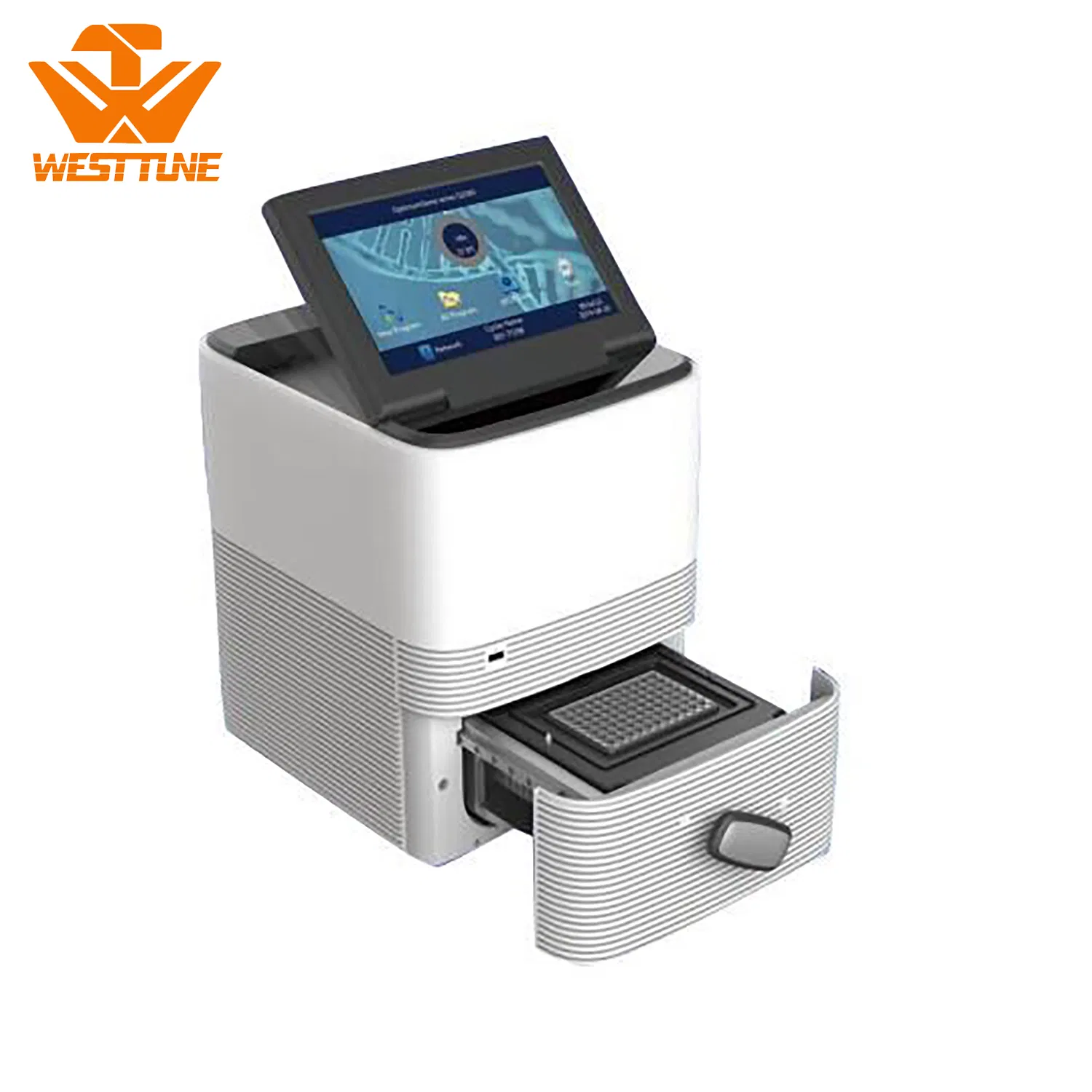

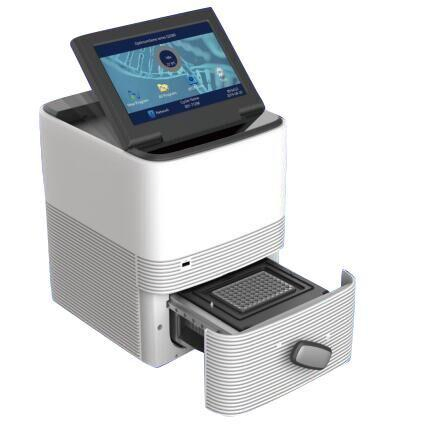

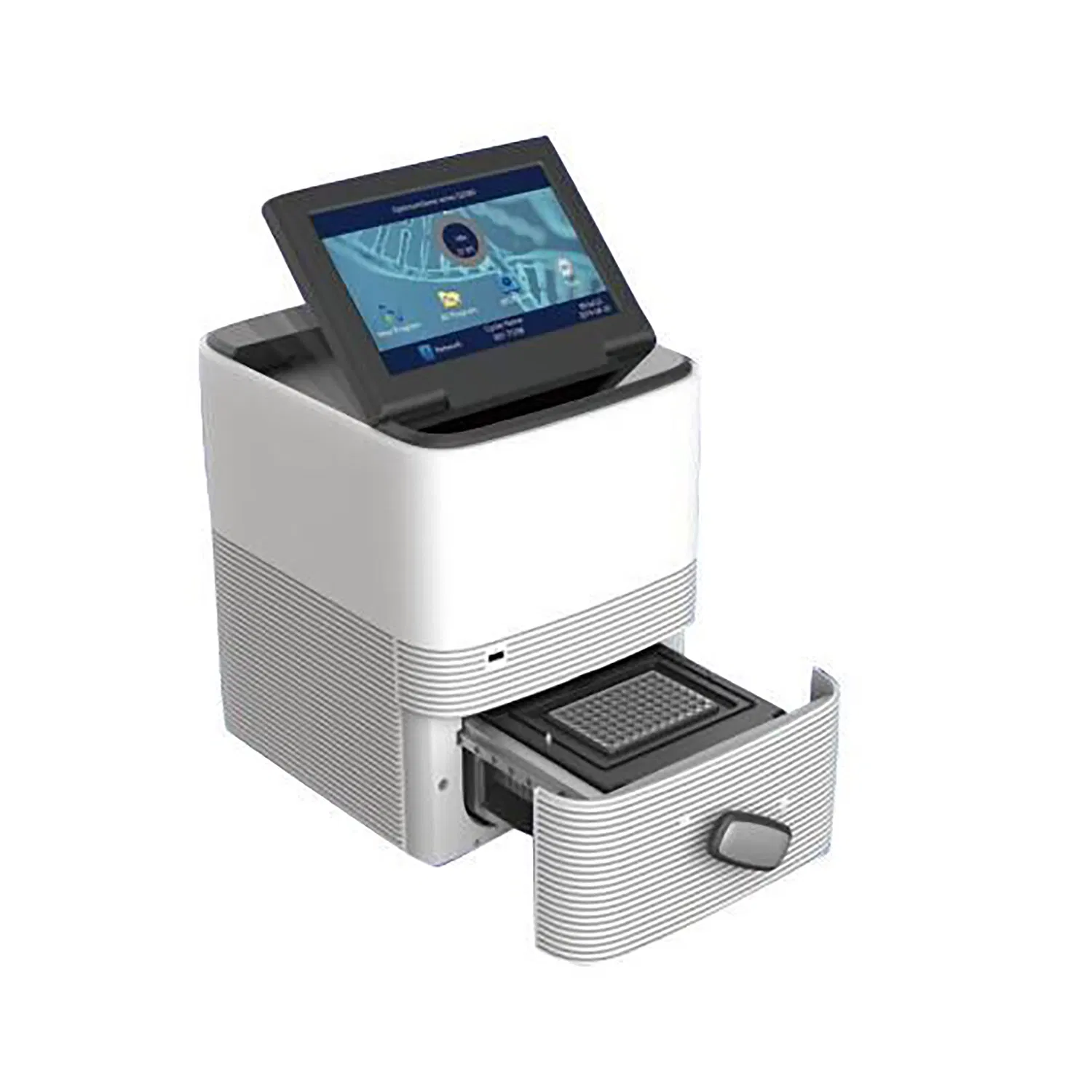

Q2000A 2channels 96wells Real-Time PCR System
Q2000A 2channels 96wells Real-Time PCR System
Q2000A 2channels 96wells Real-Time PCR System
1 / 3
Q2000A 2channels 96wells Real-Time PCR System
Q2000A 2channels 96wells Real-Time PCR System
Q2000A 2channels 96wells Real-Time PCR System

Q2000A 2channels 96wells Real-Time PCR System

Customization: Available
Classification: Biological Diagnostics
Certification: CE
Send Inquiry

Product Description

📁 Basic Information
Model NO.
Q2000A
Sample Block Capacity
96 Wells * 0.1 Ml
Reaction Volume
10-50UL
AC Power Supply
100-240V, 50-60Hz
Consumption
600 W
Net Weight
13 Kg
Operating Systems
Windows 10, Windows 7, Windows XP
Excitation
Long Life LED Lamps
Detection
CCDs
Dynamic Range
1-10^10
Sensitivity
≥1 Copy
Specification
334 x 280 x 365mm
Origin
China
HS Code
9027809990
🔬 Product Description

Q2000A 2-Channel 96-Well Real-Time PCR System

Q2000A PCR System 🚀 Key Features:
  • Connection via an Ethernet cable or via router.
  • Pre-calibrated optics allow immediate use without additional calibration.
  • Automatic Quality Control (QC) on data ensures reliable analysis results.
  • Graphical display of protocols, default templates, and real-time status.
  • Simple and intuitive program design for easy operation.
  • Supports standalone mode using a USB flash drive or computer network control.
  • Real-time monitoring of amplification or melt curves via 10" touch screen.
  • Intuitive QPCR plate setup with thermal gradient capability (12 columns).
  • Multitasking software capable of analyzing multiple experiments simultaneously.
  • Comprehensive data analysis methods: Standard curves, Melt-curve, Relative quantification, Allelic discrimination (SNP), and Presence/Absence assays.
  • Advanced algorithms: auto-baseline, auto-threshold, and amplification efficiency (E).
  • Export results easily to .xls or .txt formats.
📊 Technical Specifications
Model Q2000A Q2000B Q2000C
Instrument Performance
Sample Block Capacity96 wells * 0.1 ml
Reaction Volume10-50ul
Tubes OptionWhite/Clear PCR tubes, strips, or 96 well plates with optical flat cap
Heating & CoolingNew generation Peltier technology (1,000,000 cycles)
Display10" Color TFT LCD and Touch Screen
Temperature Control
Block Temp. Range0°C ~ 105°C
Max. Heating/Cooling Rate6°C/sec / 5°C/sec
Temp. Accuracy/Uniformity≤ ±0.1°C / ≤ ±0.2°C (at 90°C)
Gradient Range30°C ~ 100°C
Fluorescence Detection
Excitation / DetectionLong life LED lamps / CCDs
Calibrated Dyes F1: FAM, SYBR Green
F2: VIC, HEX, JOE, Cy3, NED		 F1-F2 + F3: ROX, TEXAS-RED
F4: CY5		 F1-F4 + F5: CY5.5
F6: Reserved
Physical Characteristics
Net Weight13 KG
Dimension (LxWxH)334 x 280 x 365mm
📸 Product & Facility Gallery
Other Hot Selling Models Hot Selling PCR Manufacturing & Quality Control

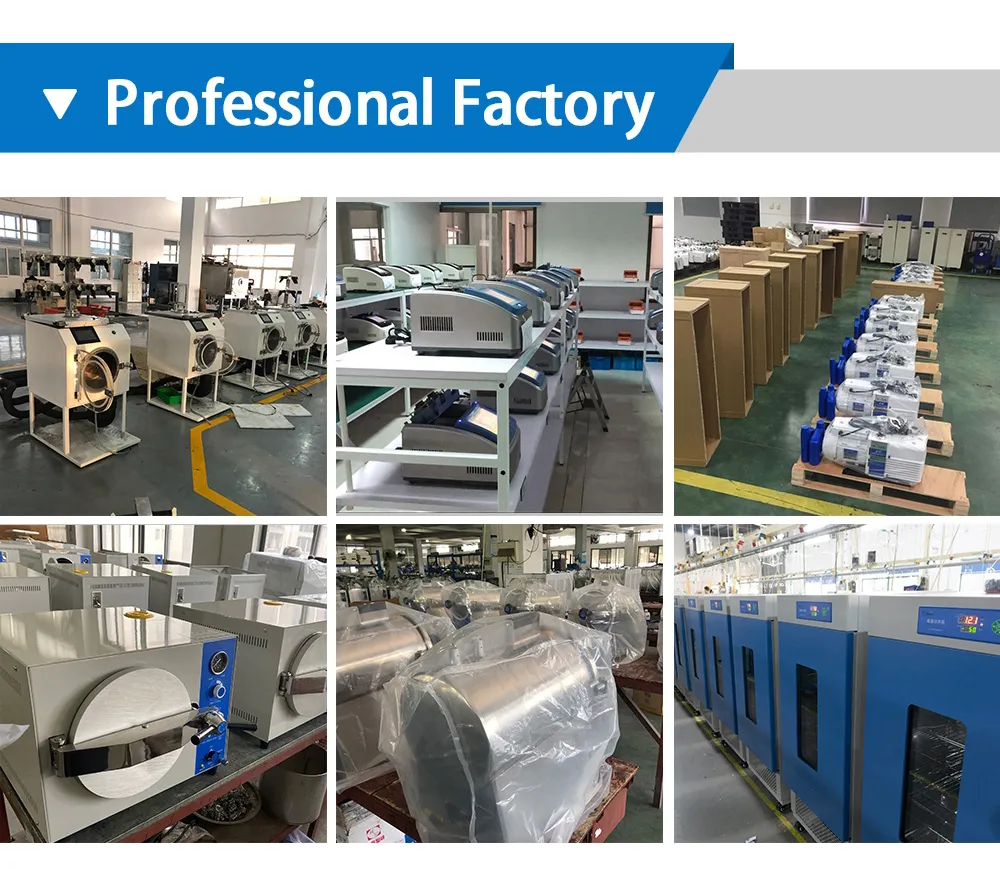

Facility 1 Facility 2 Facility 3 Facility 4 Facility 5 Facility 6
❓ Frequently Asked Questions
What is the sample capacity of the Q2000A system?
The system features a sample block capacity of 96 wells, compatible with 0.1 ml tubes, strips, or standard 96-well PCR plates.
Does the instrument require regular optical calibration?
No, the Q2000A comes with pre-calibrated optics, allowing you to start using the instrument immediately upon installation without additional calibration.
Which fluorescence dyes are supported by the Q2000A model?
The Q2000A is a 2-channel system calibrated for FAM/SYBR Green (Channel 1) and VIC/HEX/JOE/Cy3/NED (Channel 2).
Can the system operate without a continuous PC connection?
Yes, the system can run in stand-alone mode using a USB flash drive and can be controlled via the built-in 10-inch color touch screen.
What are the heating and cooling capabilities?
It utilizes new generation Peltier technology with a maximum heating rate of 6°C/sec and a maximum cooling rate of 5°C/sec, ensuring high efficiency.
Is it possible to analyze multiple experiments at once?
Yes, the included multitasking software is designed to analyze multiple experiments simultaneously to streamline your laboratory workflow.
