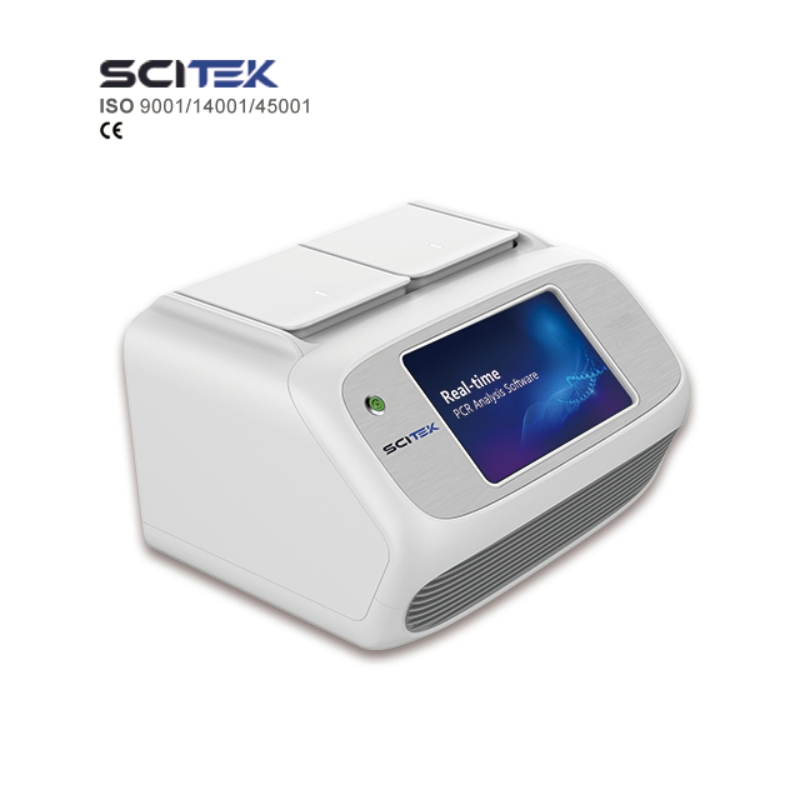

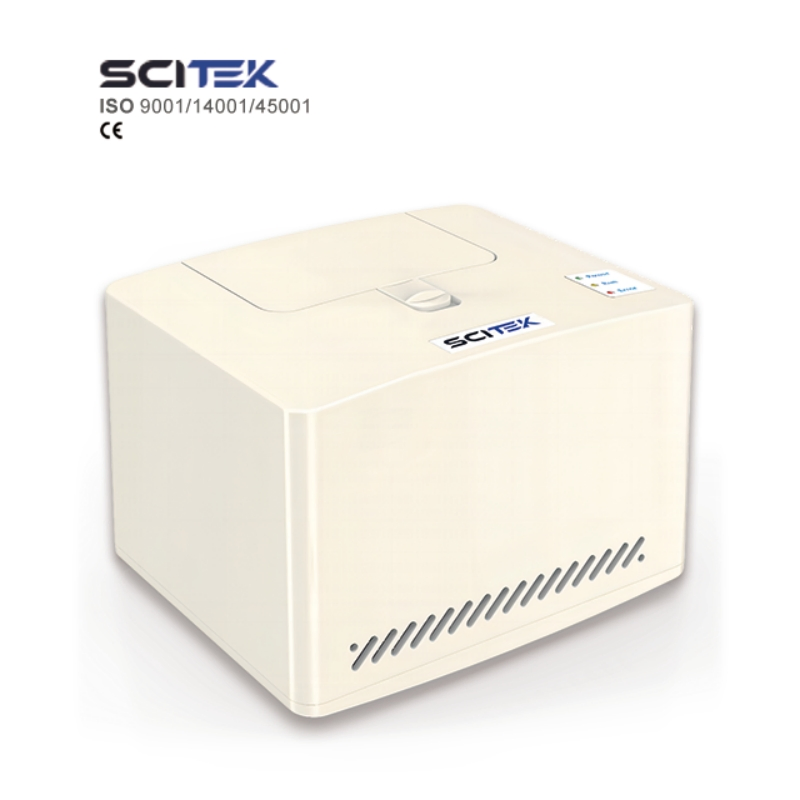

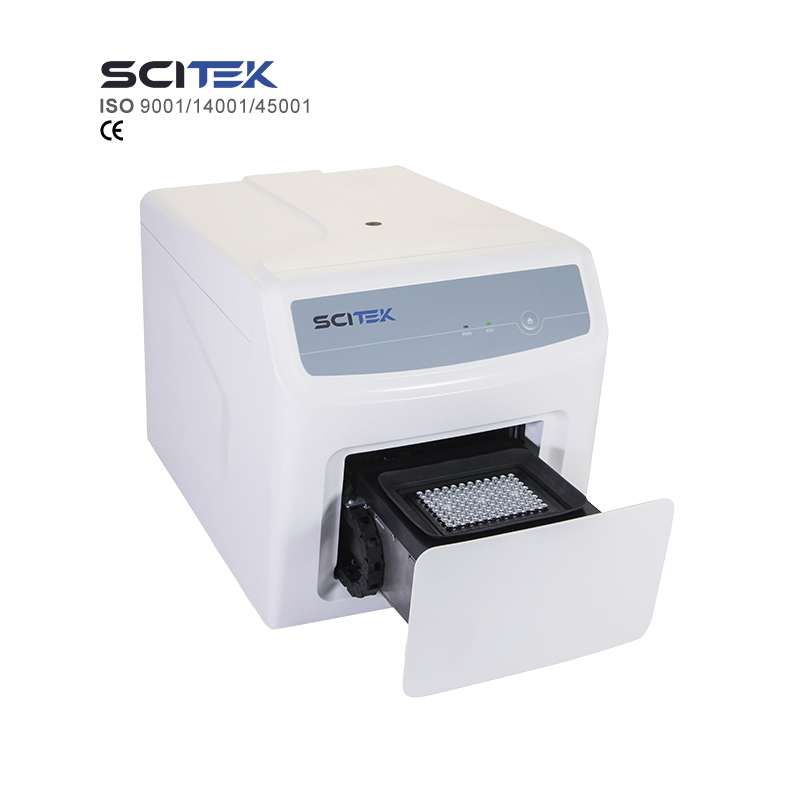

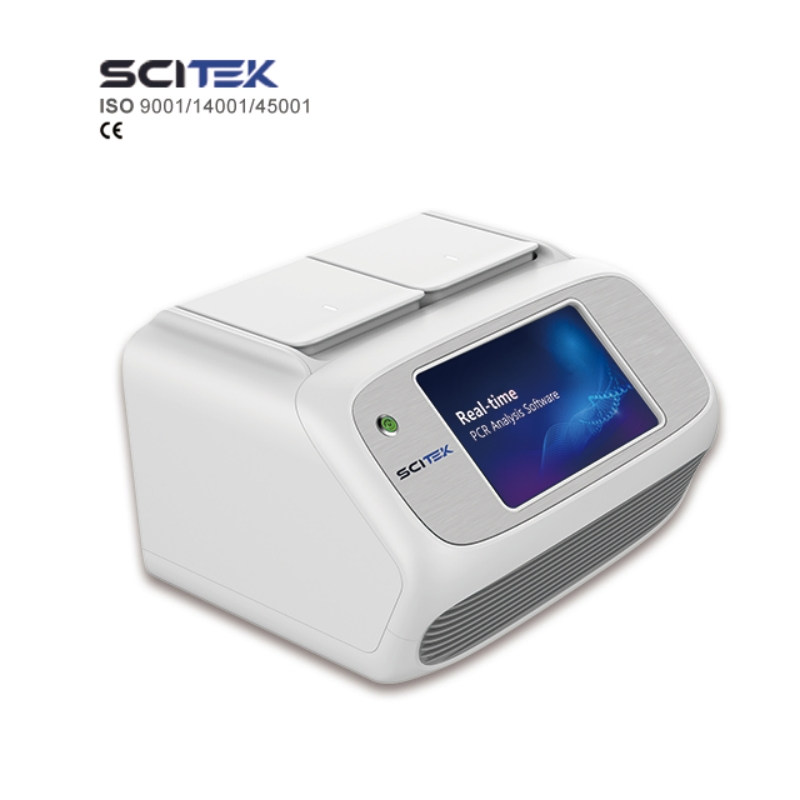

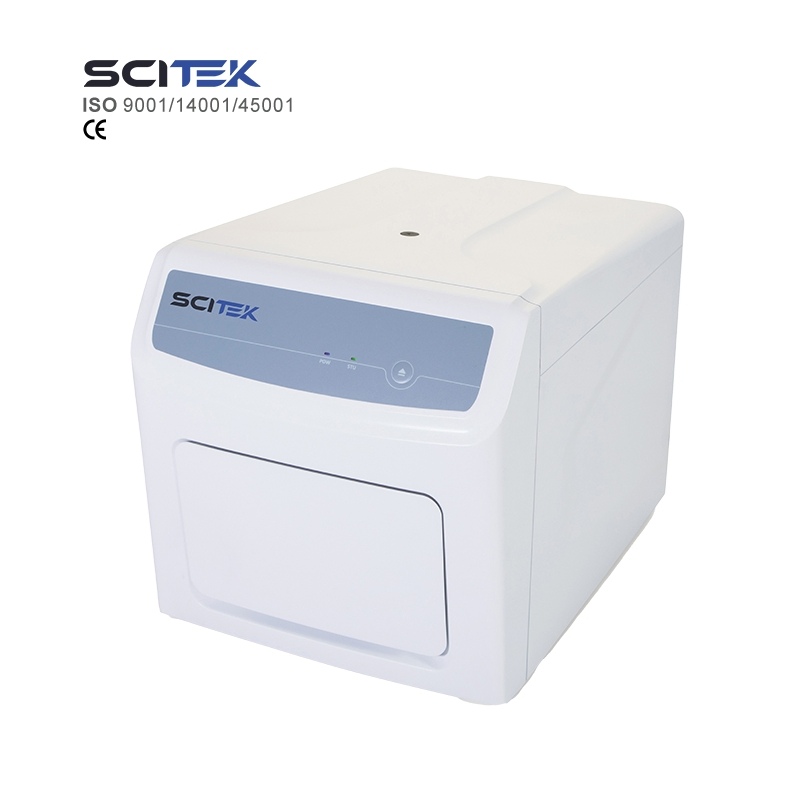

SCITEK Real-time Fluorescence Quantitative PCR System medical pcr analyzer

i

Basic Information

Model NO.:PCR-RFQ96/PCR-RFQ96I

Certification:CE, ISO13485, ISO 9001/14001/45001

Sample Capacity:0.1/0.2ml PCR tubes x96, 8x12 PCR plate

Reaction Volume:10-50 microliters

Temp Range:4-100 degree (Resolution: 0.1 degree)

Detection Mode:Time-resolved signal separating technology

Sensitivity:Single copy gene

Dynamic Range:10 orders of magnitude copies

Origin:China

HS Code:9027509090

★

Product Description

Real-time Fluorescence Quantitative PCR System

The real-time PCR system is a new optical scanning detection system that uses an innovative scanning method and time-resolved signal separation technology to ensure accurate and reliable results.

Up to 6 fluorescence detection channels allow multiplex PCR.
Effectively reduces multi-colour crosstalk and fringing effects without ROX correction.
New optical scanning detection system to ensure accuracy.
Innovative time-resolved signal separation technology.
Unique edge temperature compensation for precise control.

⚙

Product Parameters

Model	PCR-RFQ96	PCR-RFQ96I
Sample Capacity	0.1/0.2 mL PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
Reaction Volume	10-50 μL
Thermal Cycle Technology	Peltier
Max. Heating/Cooling Rate	6.0°C/s
Temperature Accuracy	± 0.2°C
Temperature Uniformity	±0.2 ºC @60 ºC, ±0.3 ºC @95 ºC
Excitation Light Source	4 monochrome LED	6 monochrome LED
Detection Device	PMT
Fluorescent Channel	4 channels	6 channels
Supported Dye	FAM/SYBR Green, VIC/HEX ROX, Cy5, Cy3 (only for PCR-RFQ96I)
Dynamic Range	10 orders of magnitude copies
Sizes (W×D×H)	720×560×620 mm

📋

Certifications & Production

?

Frequently Asked Questions

Q1: What is the maximum heating and cooling rate of the PCR-RFQ96 system? The system achieves a high-performance max heating/cooling rate of up to 6.0°C/s using Peltier thermal cycle technology.

Q2: How many fluorescence detection channels are available? The PCR-RFQ96 provides 4 channels, while the PCR-RFQ96I model supports up to 6 channels for multiplexing capabilities.

Q3: Which fluorescent dyes are supported by this analyzer? It supports a wide range of dyes including FAM/SYBR Green, VIC/HEX, ROX, Cy5, and additionally Cy3 for the 6-channel model.

Q4: What is the detection sensitivity of the system? The system is highly sensitive and can detect a single copy gene with a dynamic range of 10 orders of magnitude copies.

Q5: Does the system require ROX correction for crosstalk? No, the innovative scanning method and time-resolved signal separation technology effectively reduce crosstalk without the need for ROX correction.

Q6: What certifications does this medical PCR analyzer hold? The equipment is fully certified with CE, ISO13485, and ISO 9001/14001/45001 standards.
