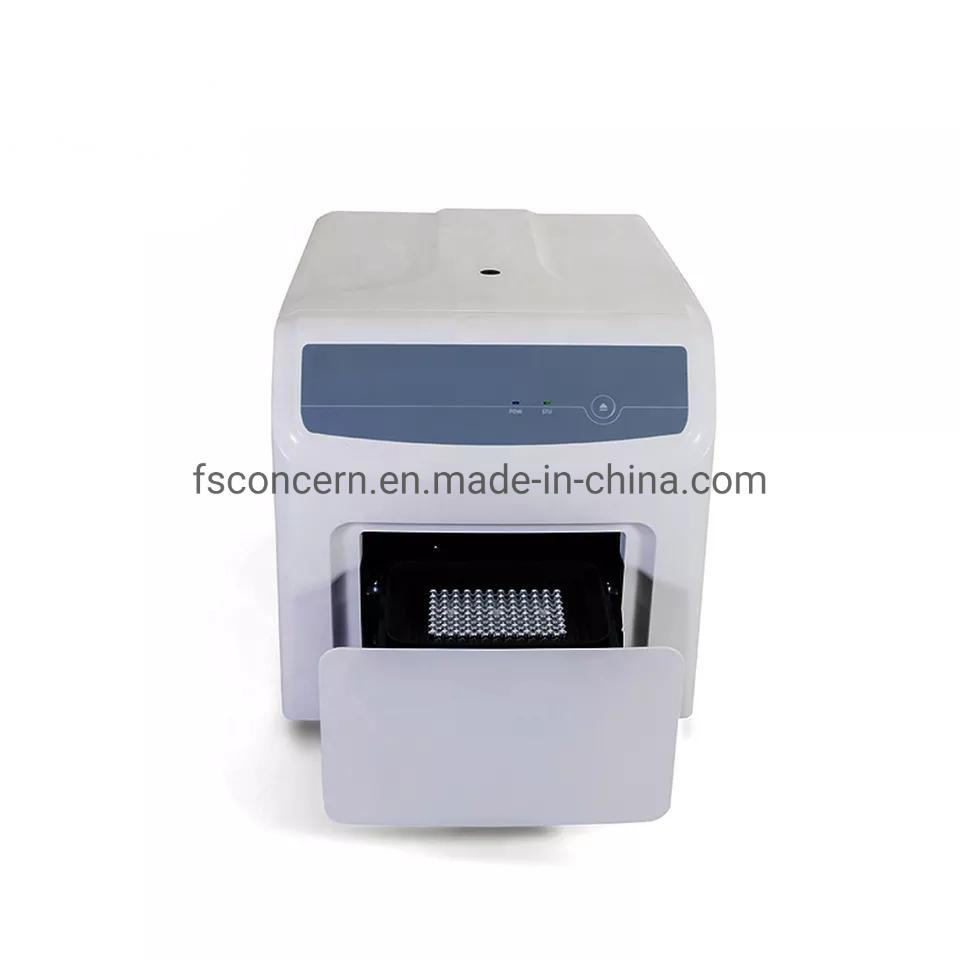

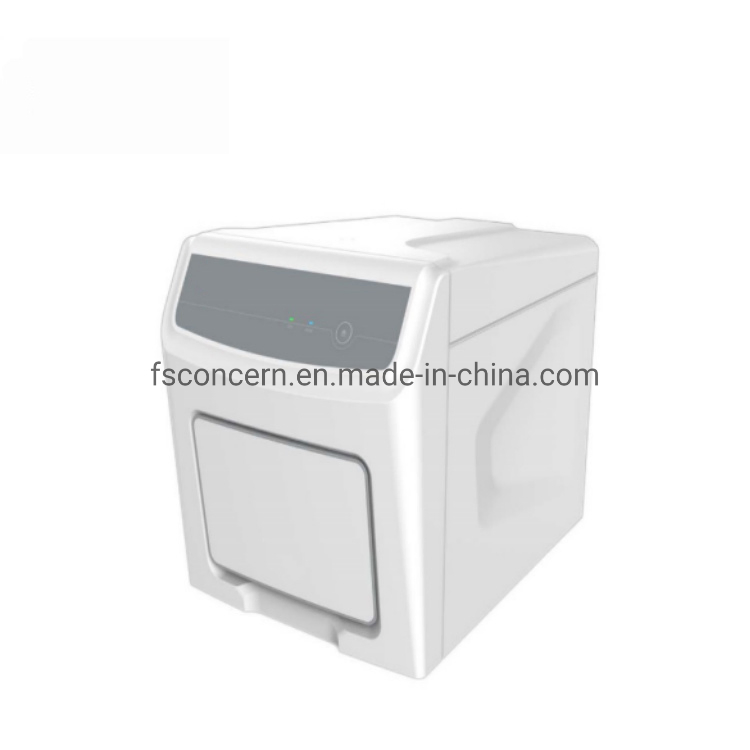

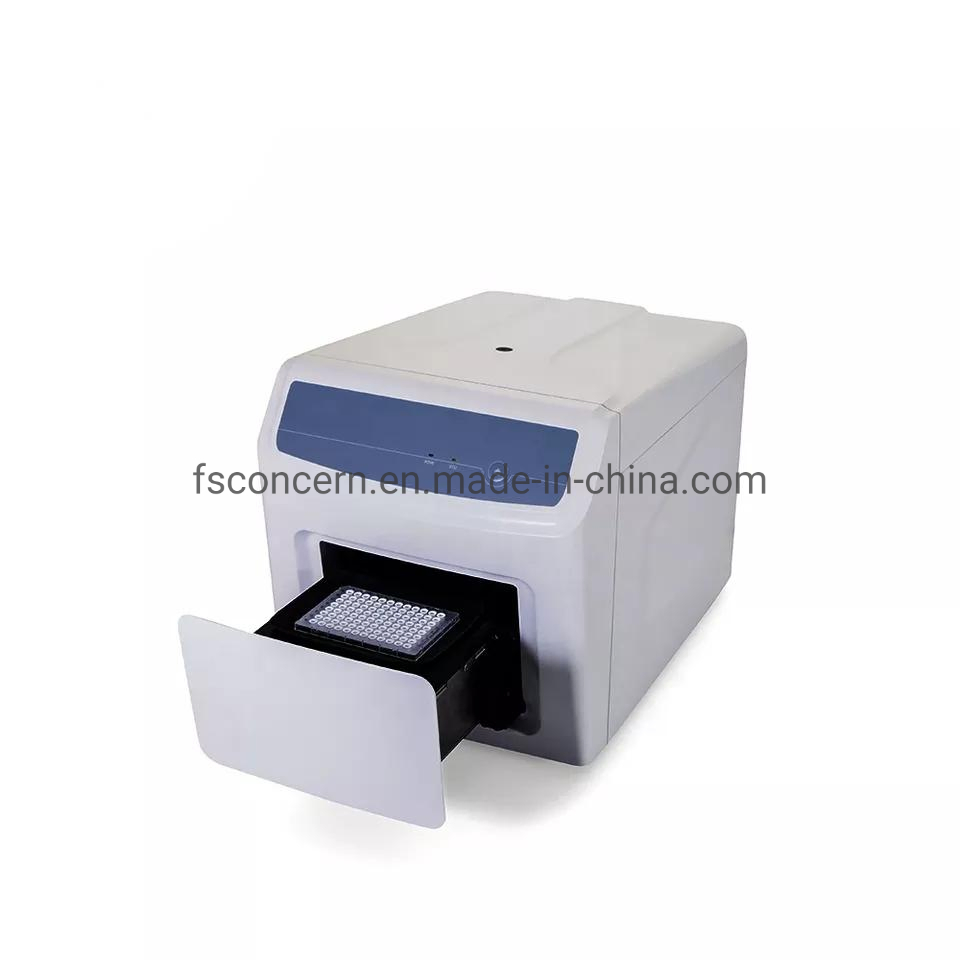

Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
1 / 5
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine
Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine

Medical Lab Thermo Cycler Real-Time Fluorescence Quantitative PCR Detection Machine

Classification: Biological Diagnostics
Type: PCR Analysis System
Certification: CE, ISO13485
Send Inquiry

Product Description

Basic Information
Model NO. CCL-PCR96
Channel 4/6
Transport Package Standard Export Package
Origin China
Production Capacity 500 units/Month
Product Description
Medical Lab Thermo Cycler Real-time Fluorescence Quantitative PCR Detection Machine
Model: CCL-PCR96

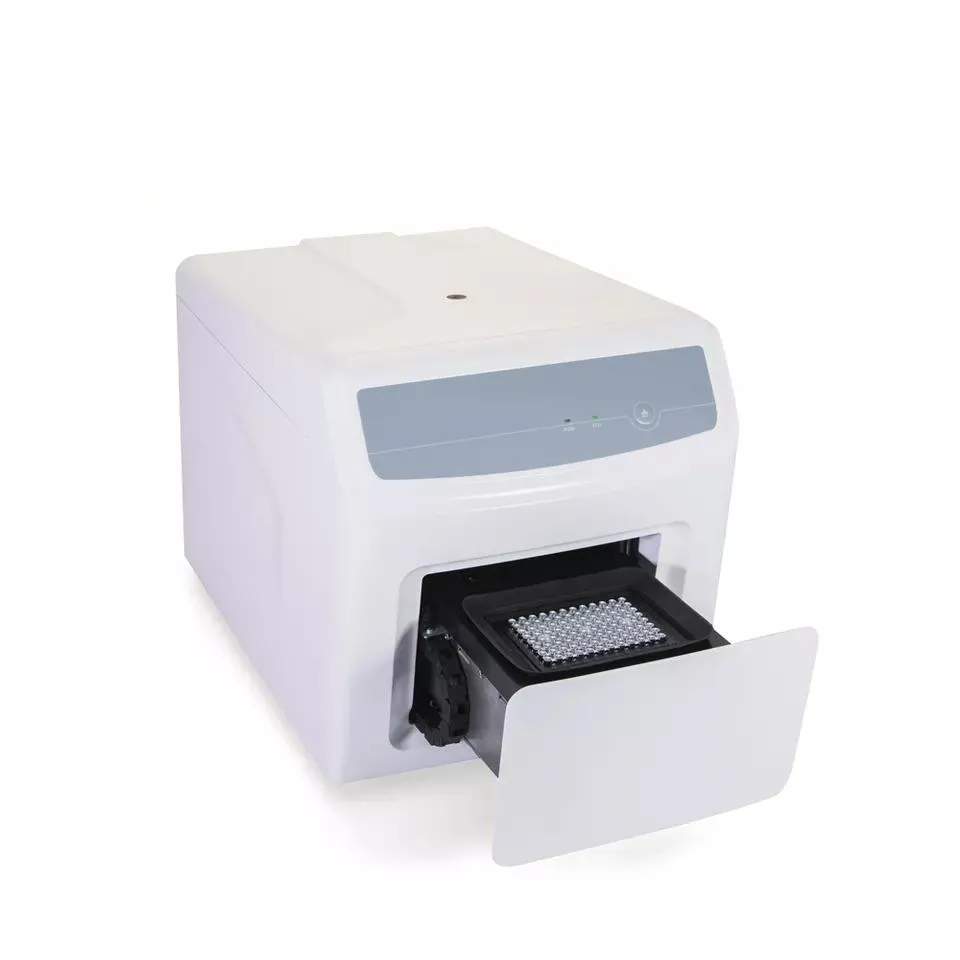

Medical Lab Thermo Cycler Real-Time PCR Detection Machine
Key Features
As a necessary choice for quantitative analysis of molecular biology, the real-time PCR system has been widely used in scientific research, clinical detection, quality safety testing, and forensic applications.
  • Up to 6 fluorescence detection channels allowing multiplex PCR.
  • Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.
  • New optical scanning detection system.
  • Innovative scanning method and time-resolved signal separation technology.
  • Unique edge temperature compensation technology.
  • User-friendly control software.
Technical Specifications
Temperature Control System
Sample capacity96
Reaction volume10-50 μl
Thermal cycle technologyPeltier
Max. Heating/Cooling rate6.0° C/s
Heating temperature range4 - 100 °C
Temperature accuracy± 0.2°C
Temperature uniformity±0.2ºC @60ºC, ±0.3ºC @95ºC
Temperature gradient setting range30-100°C
Temperature gradient difference range1 - 36°C
Detection System
Excitation light source4/6 monochrome high efficiency LEDs
Detection devicePMT
Detection modeTime-resolved signal separating technology
Wavelength rangeExcitation: 455-650nm / Detection: 510-715nm
Fluorescent channels4/6 channels
Supported dyeFAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
SensitivitySingle copy gene
Resolution1.33 folds copy number difference
Dynamic range10 orders of magnitude copies
Comprehensive Laboratory Solutions
Hematology Analyzer
Chemistry Analyzer
Coagulometer
Microplate Reader/ Washer
Urine Analyzer
Lab Refrigerator
HbA1c Analyzer
Specific Protein Analyzer
Blood Gas Analyzer/POCT
Immunoassay Analyzer
Electrolytic Analyzer
Auto Feces Analyzer
PCR/ Thermocycler
Centrifuges
Lab Incubator
Biosafety Cabinet
Spectrophotometer
Microscope
PCR Machine Detail 1

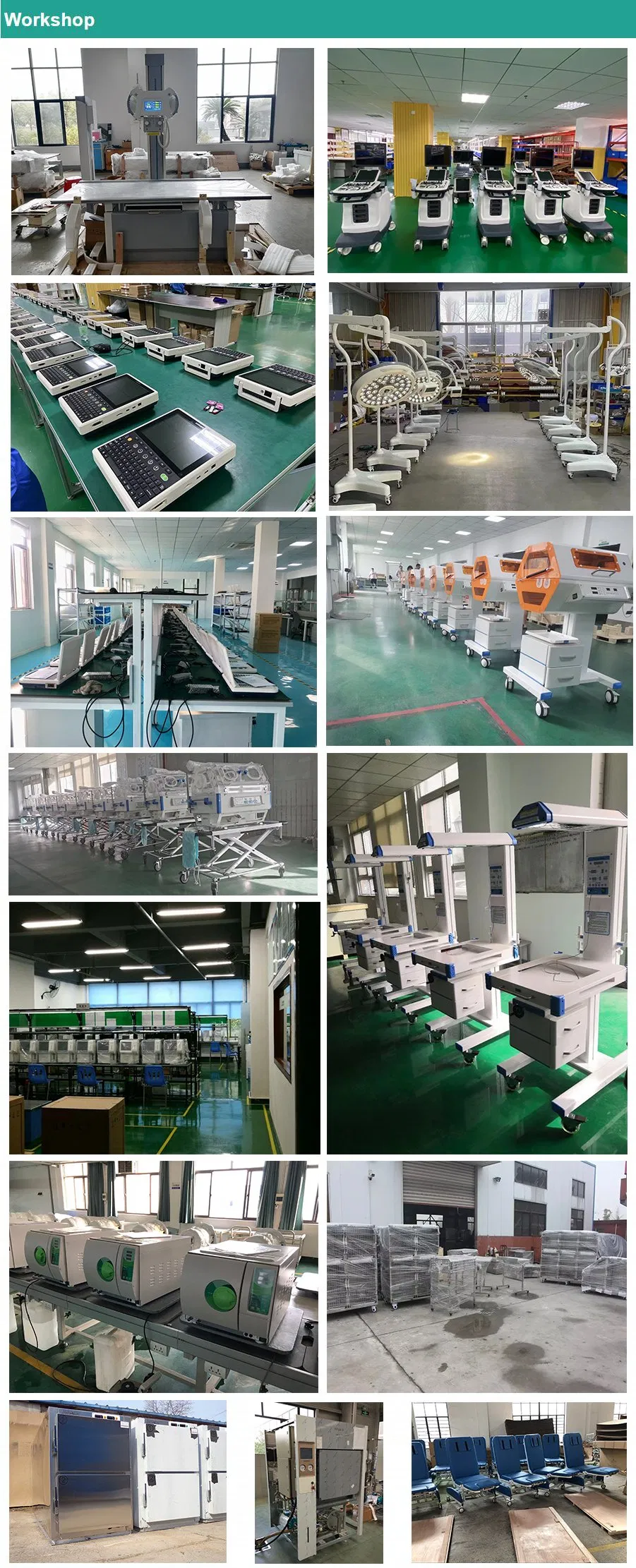

PCR Machine Detail 2
PCR Machine Detail 3
Frequently Asked Questions
What is the sample capacity of the CCL-PCR96 model?
The system features a 96-well sample capacity, suitable for standard laboratory throughput needs.
Does this PCR machine require ROX correction?
No, the advanced optical system effectively reduces multi-color crosstalk and edge effects, eliminating the need for ROX correction.
What is the maximum heating and cooling rate?
The machine achieves a high-performance heating and cooling rate of up to 6.0°C per second.
Which fluorescent dyes are supported by the detection system?
It supports a wide range of dyes including FAM, SYBR Green, VIC, JOE, HEX, TET, ABY, NED, TAMRA, Cy3, JUN, ROX, Texas Red, Mustang Purple, and Cy5/LIZ.
What detection technology is utilized in this system?
The system uses a PMT (Photomultiplier Tube) detection device combined with innovative time-resolved signal separation technology for high sensitivity.
What is the temperature control range?
The heating temperature range is from 4°C to 100°C, with high accuracy of ±0.2°C.
