Basic Information
| Model NO. |
Gentier 48R |
| Certification |
CE, FDA, ISO13485 |
| Group |
All |
| Transport Package |
Paper Carton |
| Specification |
50*36*36 cm |
| HS Code |
9027509090 |
■
Product Description

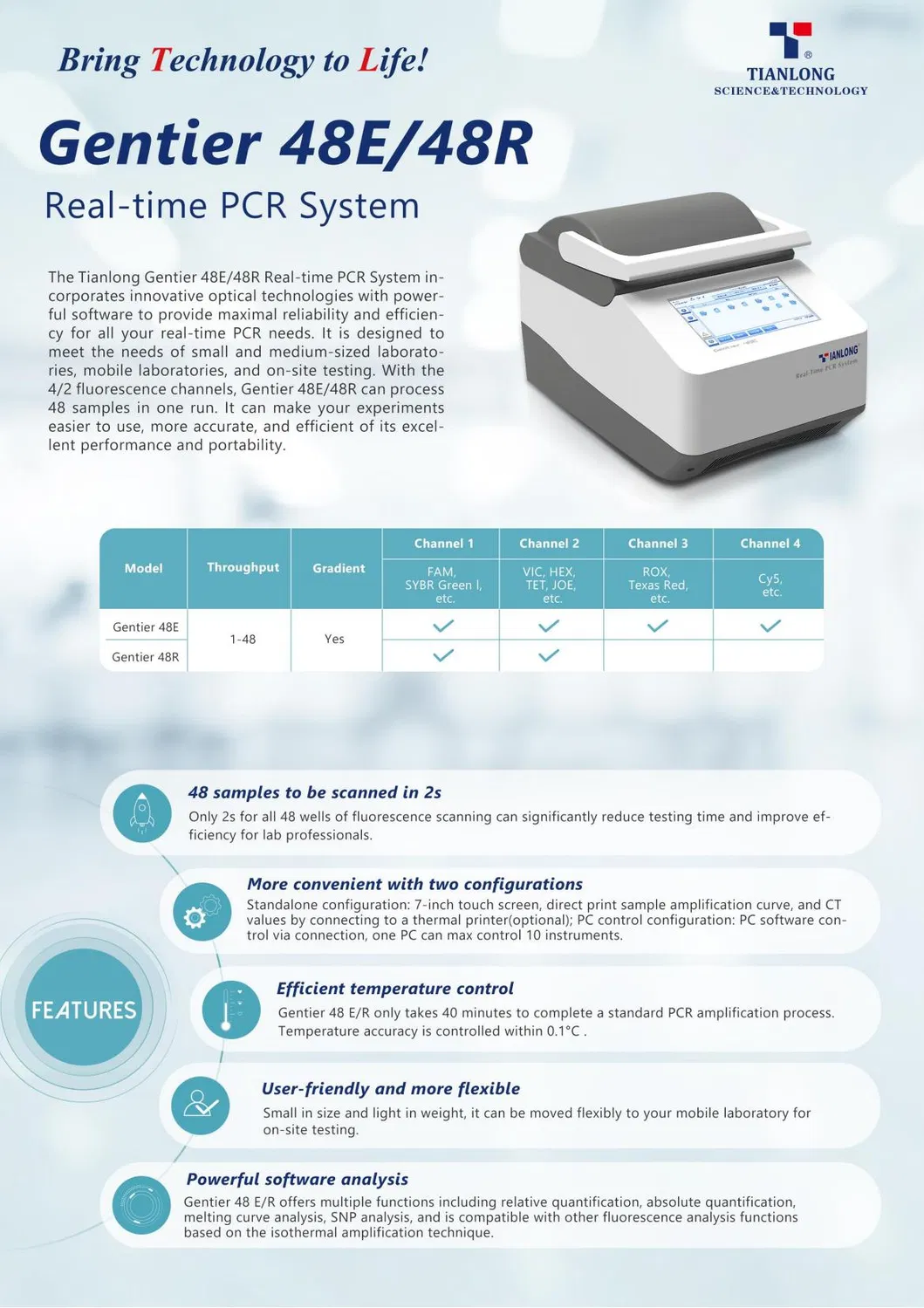

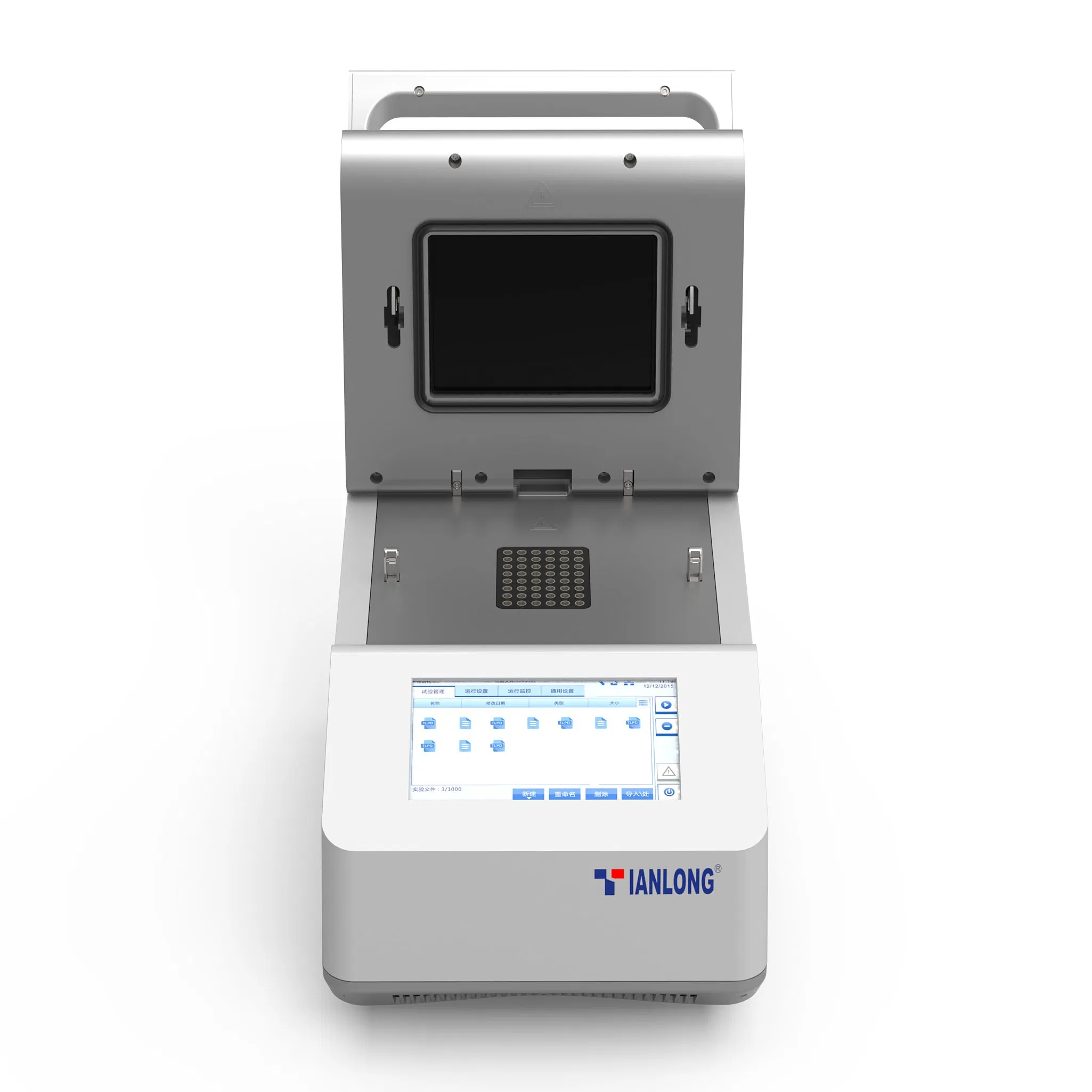

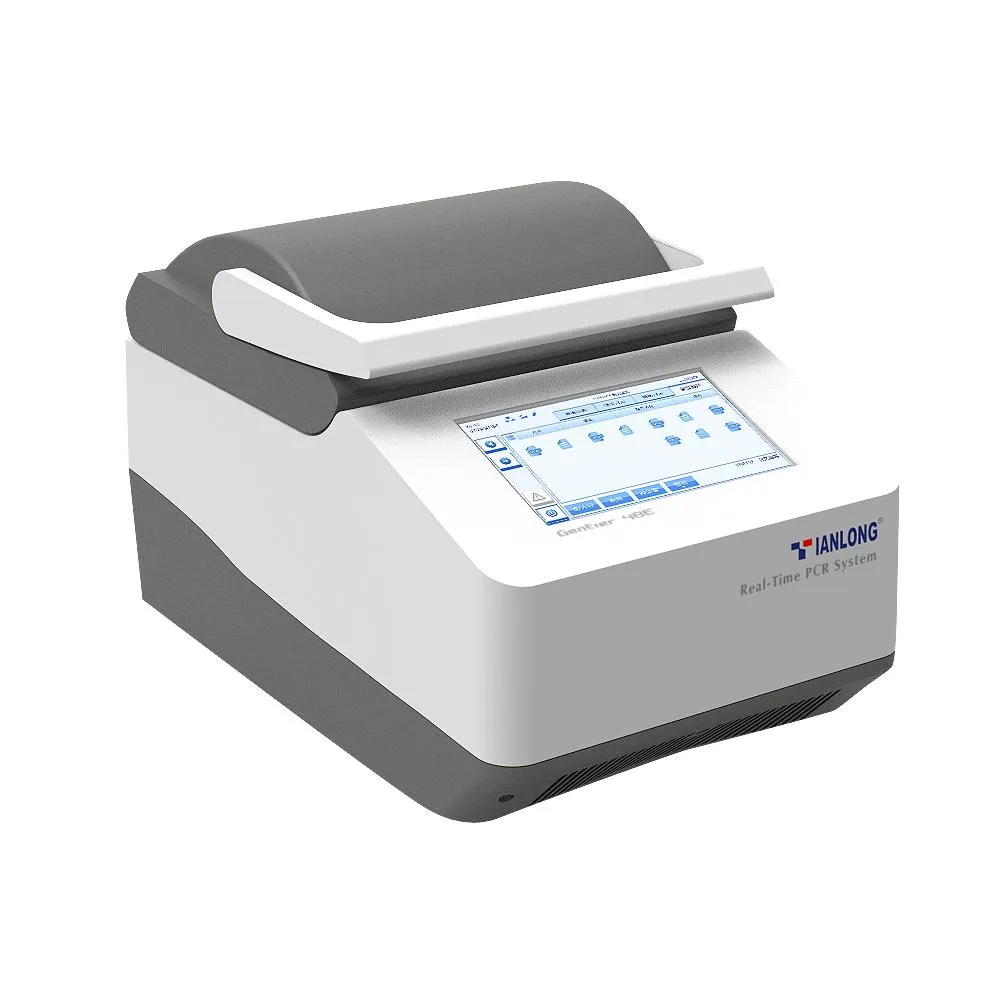

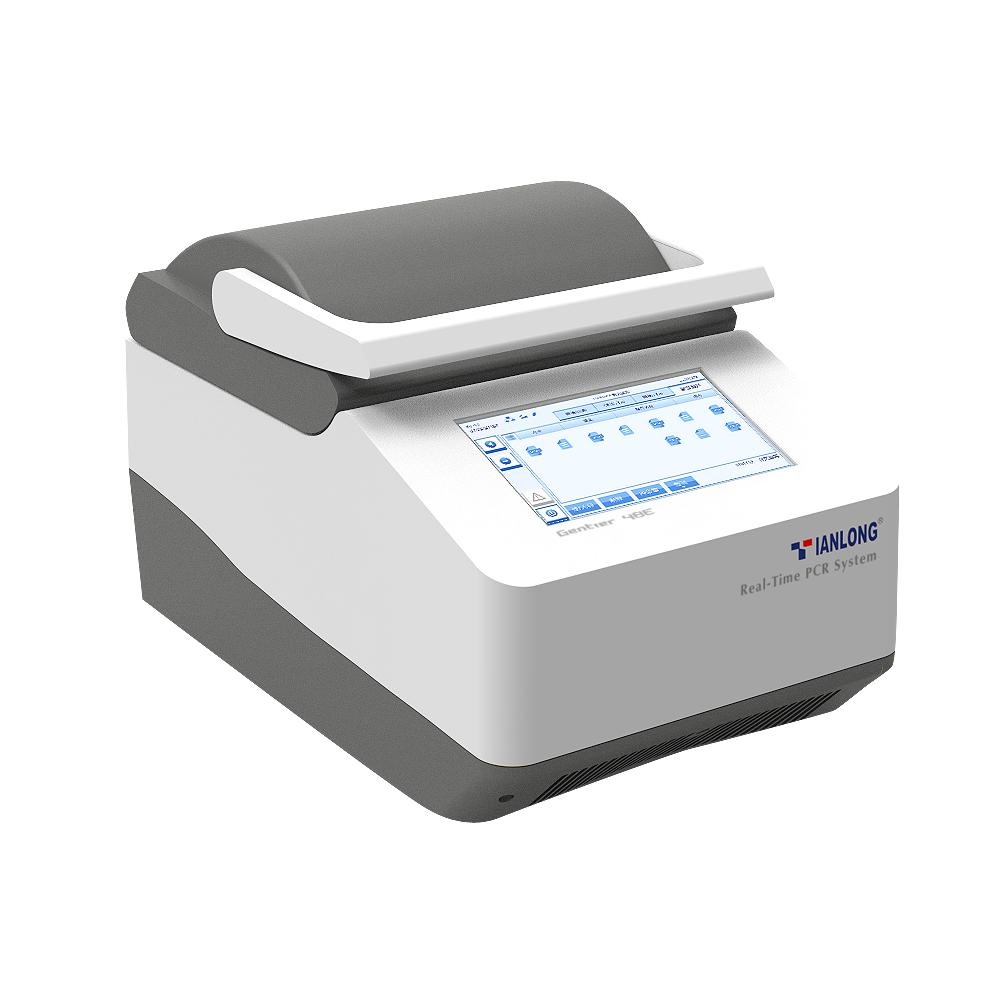

The Gentier 48R Real-time PCR System incorporates innovative optical technologies with powerful software to provide maximal reliability and efficiency for all your real-time PCR needs. It is designed to meet the needs of small and medium-sized laboratories, mobile laboratories, and on-site testing. With the 4/2 fluorescence channels, Gentier 48R can process 48 samples in one run. It can make your experiments easier to use, more accurate, and efficient of its excellent performance and portability.

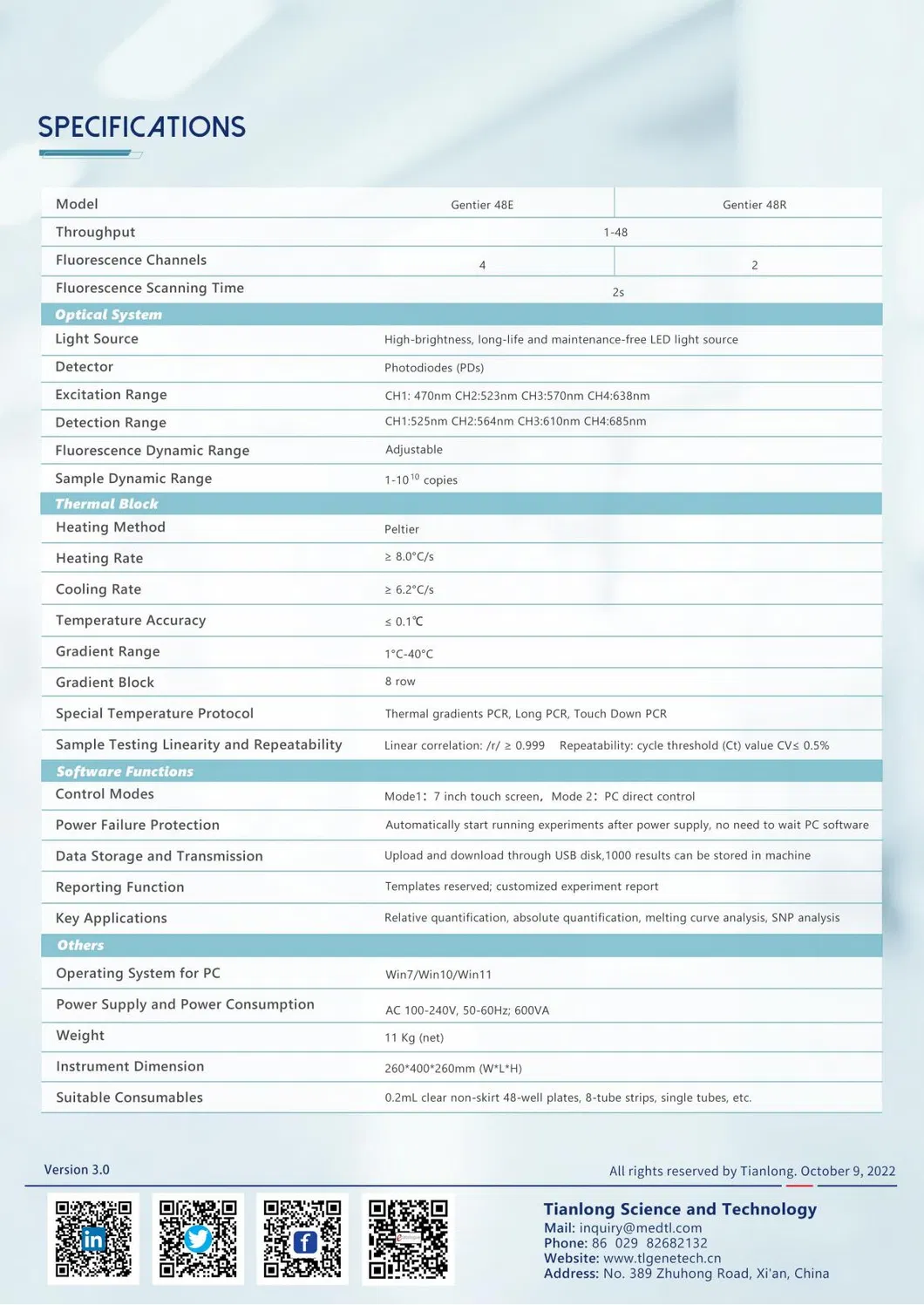

| Model |
Throughput |
Gradient |
Channel 1 |
Channel 2 |
Channel 3 |
Channel 4 |
| Gentier 48R |
1-48 |
Yes |
FAM, SYBR Green l, etc. |
VIC, HEX, TET, JOE, etc. |
ROX, Texas Red, etc. |
Cy5, etc. |
▶
48 samples to be scanned in 2s
Only 2s for all 48 wells of fluorescence scanning can significantly reduce testing time and improve efficiency for lab professionals.
▶
More convenient with two configurations
Standalone configuration: 7-inch touch screen, direct print sample amplification curve, and CT values by connecting to a thermal printer(optional); PC control configuration: PC software control via connection, one PC can max control 10 instruments.
▶
Efficient temperature control
Gentier 48R only takes 40 minutes to complete a standard PCR amplification process. Temperature accuracy is controlled within 0.1°C to ensure excellent repeatability and accuracy.
▶
User-friendly and more flexible
Small in size and light in weight, it can be moved flexibly to your mobile laboratory for on-site testing.
▶
Powerful software analysis
Offers multiple functions including relative quantification, absolute quantification, melting curve analysis, SNP analysis, and is compatible with other fluorescence analysis functions based on the isothermal amplification technique.
■

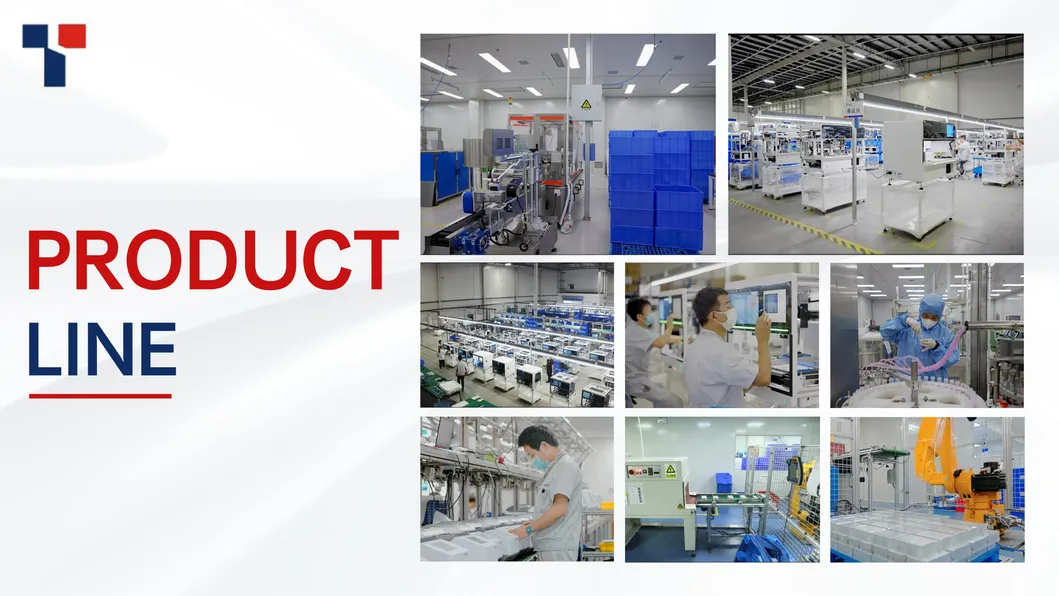

Facility and Environment
?
Frequently Asked Questions
Q1: How many samples can the Gentier 48R process in a single run?
A: The Gentier 48R is designed to process up to 48 samples per run efficiently.
Q2: How fast is the fluorescence scanning process?
A: It takes only 2 seconds for a complete fluorescence scan of all 48 wells.
Q3: What is the temperature control accuracy of the system?
A: The system maintains temperature accuracy within 0.1°C to ensure repeatability.
Q4: Does the system support standalone operation?
A: Yes, it features a 7-inch touch screen for standalone operation, and can also be controlled via a PC.
Q5: What fluorescence channels are supported?
A: It supports 4 channels, including FAM/SYBR Green I, VIC/HEX/TET/JOE, ROX/Texas Red, and Cy5.
Q6: Is this device suitable for mobile laboratory testing?
A: Absolutely. Its small size and light weight make it ideal for mobile laboratories and on-site testing.
