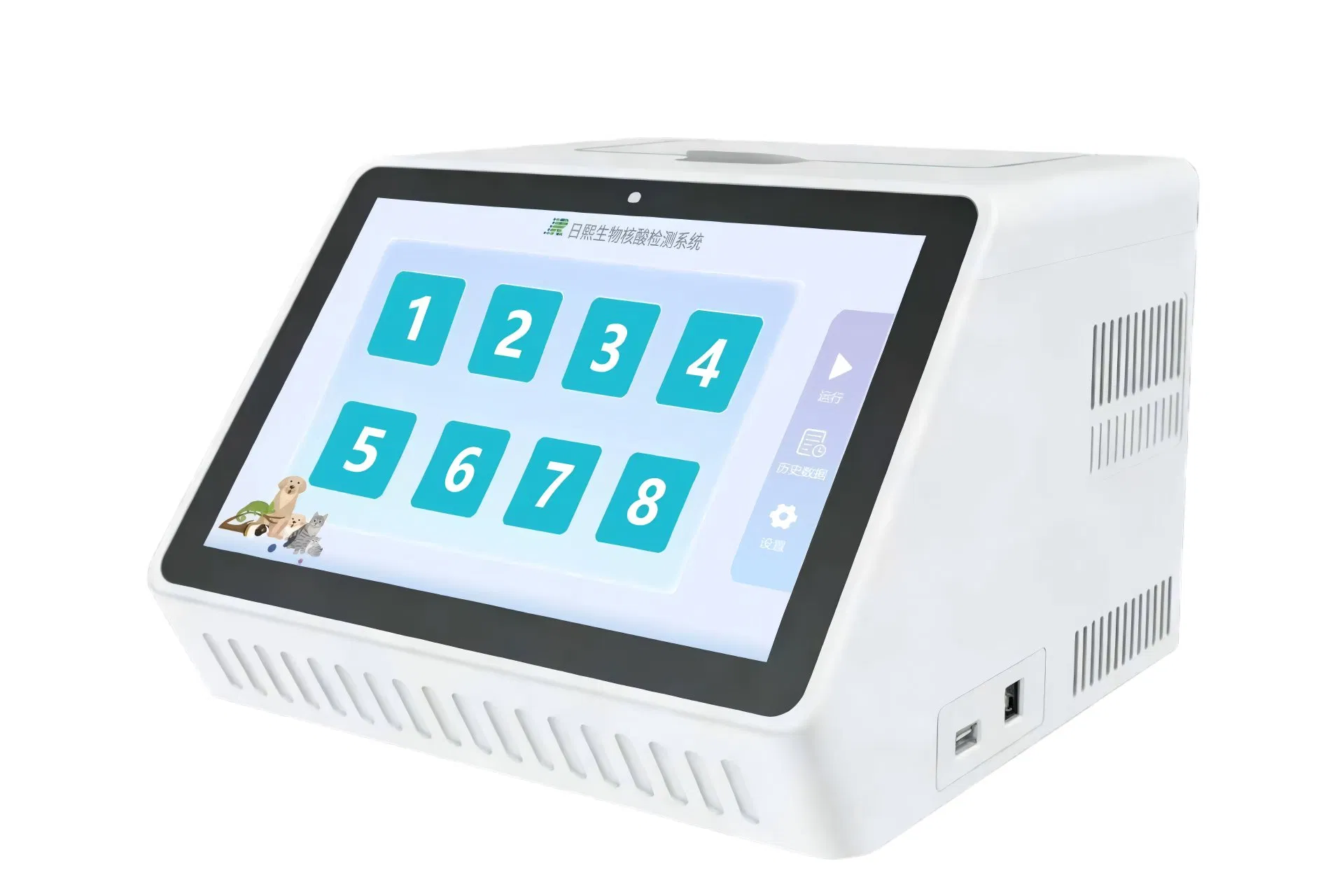

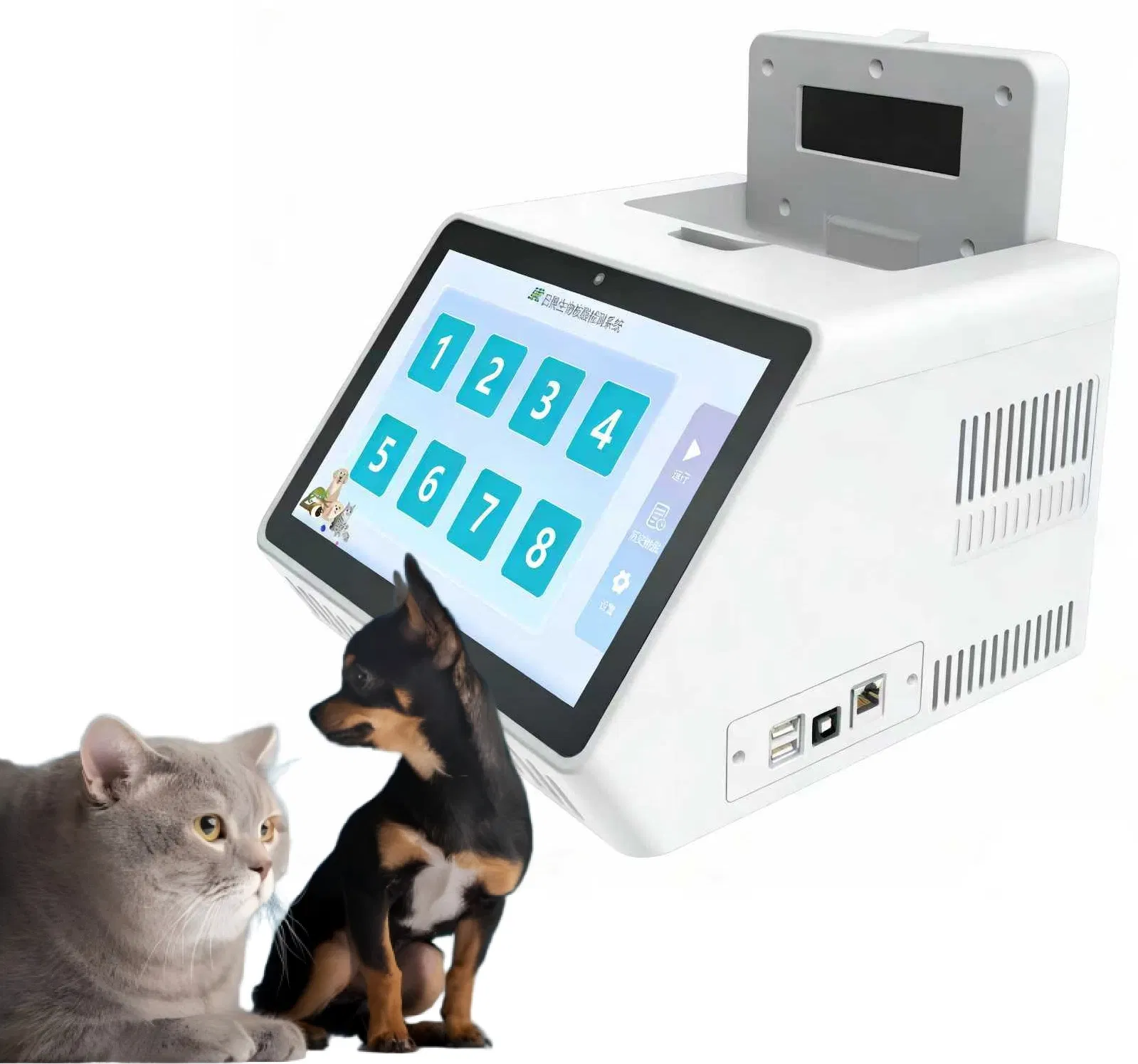

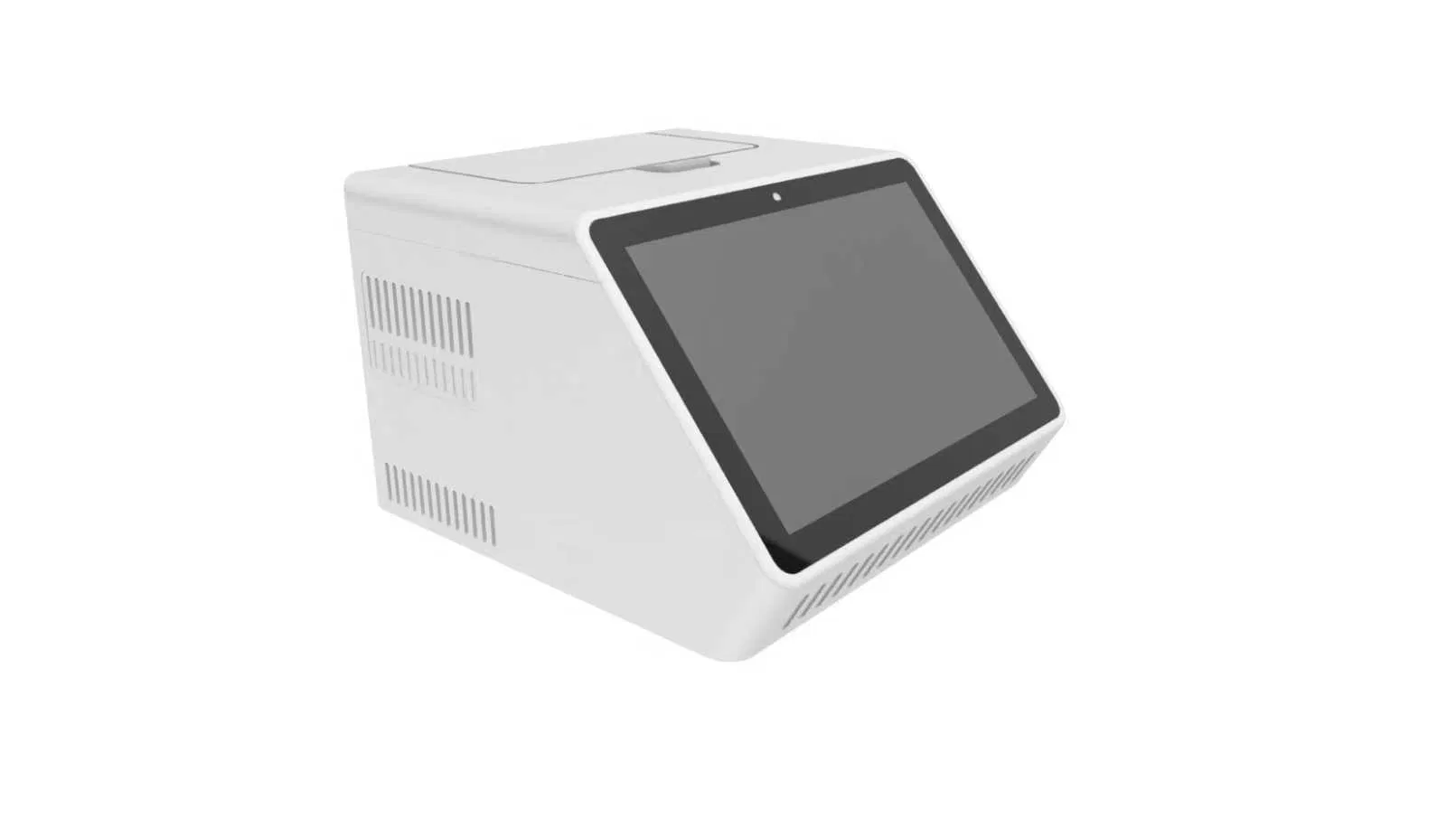

Veterinary Machine Real-Time PCR System for Quantitative DNA Analysis

Basic Info.

Model NO.

T8

Certification

CE, FDA, EEC, ISO13485

Group

Animal

Dimension Size

L275*W260*H186mm

Weight

4.8kg

Operating System

10-Inch Android Operating System

Electrical Parameters

220V/50Hz, 255W

Detection Sensitivity

Detectable Single-Copy Gene

Detection Range

10^0~10^10 Copies

Transport Package

Wooden Box

Origin

China

Portable Rapid PCR System

The system uses fluorescence signal monitoring during PCR cycles to provide real-time quantification of DNA/RNA. By detecting the Ct value, it accurately measures pathogen loads in pets or livestock samples within 30 minutes.

Core Advantages

High Sensitivity: Detects even trace amounts of viral/bacterial DNA.
Multi-Channel: Supports multiplex PCR for testing multiple diseases in one run.

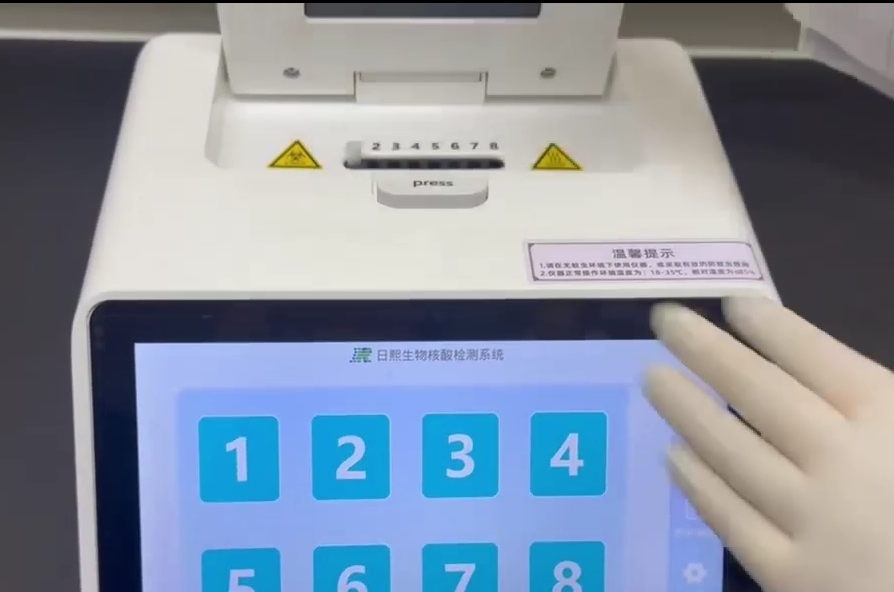

User-Friendly: Pre-programmed protocols for one-click clinical operation.
Efficient & Economic: Multiplex detection saves time and costs.

Applications

Pet Care: Rapid screening for Canine Parvovirus (CPV), Distemper (CDV), and Feline Leukemia.
Livestock: On-site detection of African Swine Fever (ASF), Bird Flu, and Foot-and-Mouth Disease.
Safety: Foodborne pathogen testing and veterinary research.

Specifications

Mode	T8	Sample size	0.2ml * 8 holes
Volume Range	20-120ul	Consumables	0.2ml Single/8-strip tube
Heating method	Semiconductor Heating/Cooling	Temperature range	4-99℃
Heating rate	Max. 6℃/s	Cooling rate	Max. 4℃/s
Accuracy	±0.1℃	Uniformity	±0.25℃
Channels	Four-channel	Sensitivity	Single-copy gene

Multi-plex Detection Items

Species	Project Name	Project Details
Feline	Respiratory 7-plex	FHV-1, FCV, M. felis, C. felis, Bb, FIV, S. aureus
Feline	Enteric Virus 5-plex	FPV, FCoV, FechPV, Bocavirus, Astrovirus
Canine	Wellness 4-plex	CPV, CDV, CCoV, CPIV
Zoonotic	Zoonotic 4-plex	Toxoplasma, Babesia, Bartonella, Leptospira
